Trade Discount 25%

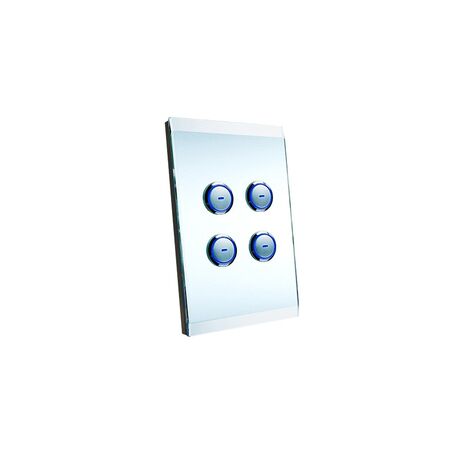

Glass Fascia Key Input Unit 4 Gang | Saturn Series | Rectangular
Glass fascia key input unit with 4 gang and rectangular design—ideal for modern home automation. Built for seamless integration, with C-Bus compatibility and LED indicators for status feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Glass Fascia Key Input Unit 4 Gang | Saturn Series | Rectangular
SKU: 5084NL-PW
Alternatively Known As: C-Bus Saturn 4 Gang Glass Fascia Switch, Clipsal 4 Button Glass Keypad, Saturn Series Key Input Unit
Technical Specifications
- 4 gang key input unit
- Mounting centres: 84 mm
- Operating temperature: 0 to 45°C
- Dimmer control with 255 levels
- C-Bus connection: terminal block for 0.2 - 1.5 sq mm wiring
- LED gang indicators for status feedback
- Programmable via learn mode or C-Bus toolkit software
- Mounting direction: horizontal and vertical
- Dimensions (H x L x W): 76mm x 20mm x 116mm
- Weight: 0.3 kg
Key Features
- 4 gang configuration
- Glass fascia design
- Mounting centres: 84 mm
- Operating temperature range: 0 to 45°C
- Dimmer control with 255 possible levels
- Inbuilt non-volatile memory retains programmed information during power failure
- LED gang indicators for illumination and status feedback
- Programmable via learn mode or C-Bus toolkit software
- C-Bus learn enabled
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper integration with C-Bus systems.
Applications
- Residential: Home automation and lighting control
- Commercial: Office buildings, hotels, and retail spaces
- Industrial: Automated control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient dimmer control reduces power consumption
- Non-volatile memory reduces need for reprogramming, saving resources
Warranty Information
Standard Clipsal warranty applies, typically 2 years against manufacturing defects.
Available Now
The Clipsal Glass Fascia Key Input Unit 4 Gang Saturn Series Rectangular is available for immediate purchase, ideal for residential and commercial automated lighting control applications.
