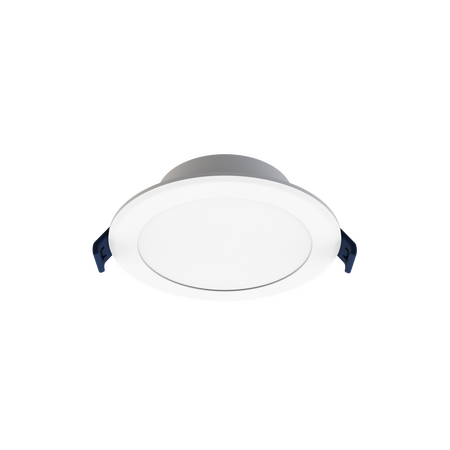

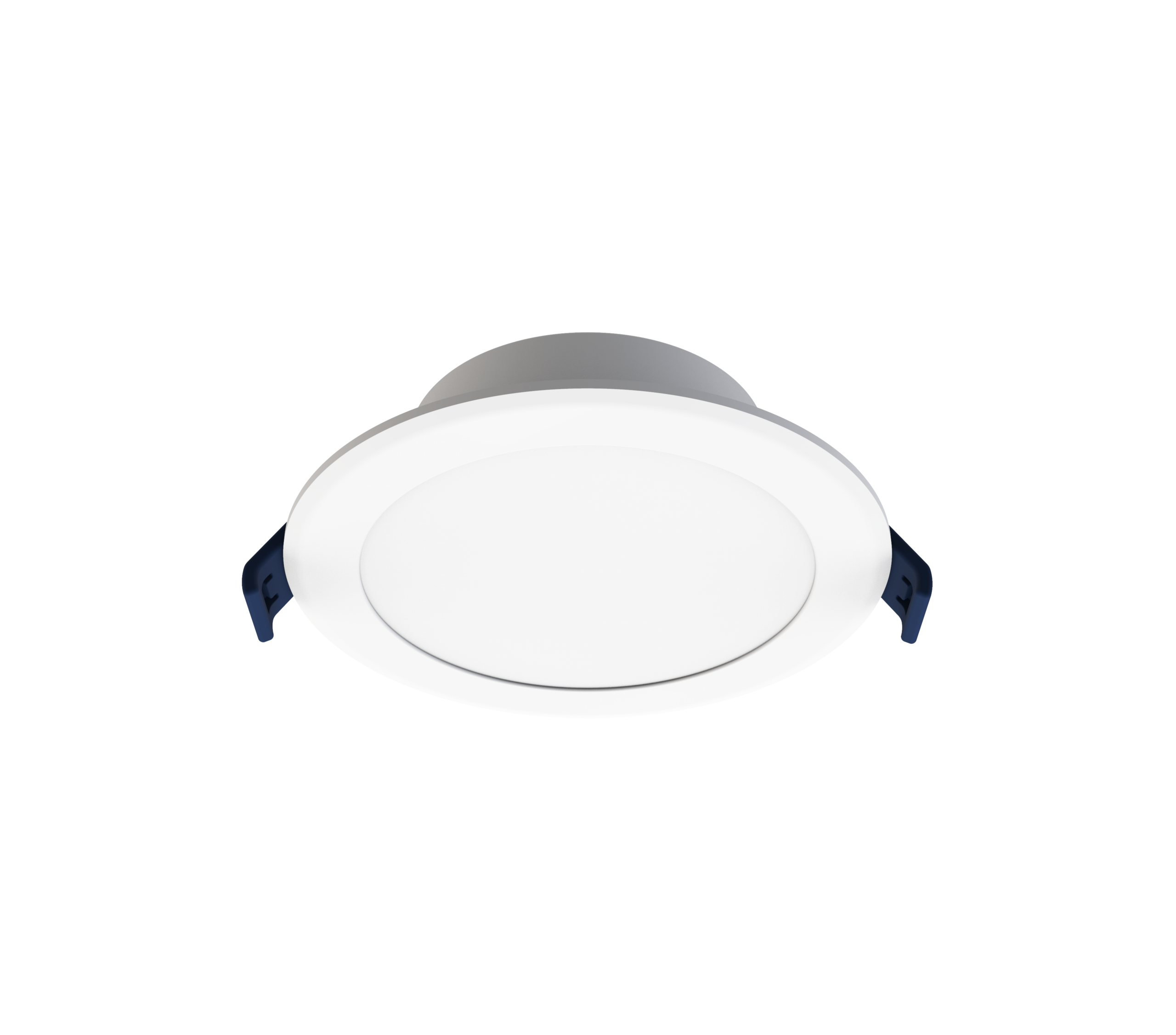

'Habitat LED 12W Fixed Downlight 3000/4200/5700K IP54 White Haneco'

BRAND: Haneco
SKU: HABITAT-FL-12W
$21.10 List price: $28.20
+ −
30 Days Return Electricians Unlock Trade Access
'Haneco Habitat downlight features high output 12W LED, 3000/4200/5700K CCT and IP54 flush diffuser with remote driver. Ideal for residential ceilings.'

Alternatively Known As: Haneco Habitat LED Downlight, Haneco Habitat Tritone Downlight, Fixed Recessed LED Downlight

Technical Specifications
  • Power: 12W
  • Lumen Output: 1188 / 1310 / 1293 lm
  • Luminous Efficacy: 105 / 121 / 115 lm/W
  • Colour Temperature: 3000K / 4200K / 5700K selectable
  • Cutout Size: 90 mm diameter
  • Input Voltage: 220-240Vac, 50/60Hz
  • Dimming: Phase-cut dimmable, trailing edge, 10-100%
  • Driver: Remote
  • Connection: 1.2 m flex and plug
  • Beam Angle: 100°
  • Colour Rendering Index: >80
  • Ingress Protection: IP54 front, IP20 rear
  • Insulation Contact Rating: IC-4
  • Electrical Classification: Class II
  • Power Factor: >0.9
  • Material: Polycarbonate body with opal polycarbonate diffuser
  • Operating Ambient Temperature: -25 to 45°C
  • Projected LED Life: >102,000 hours at Ta 25°C, L70
  • Protection: Overload and short-circuit protection
  • Smart Compatibility: KASTA compatible
  • Fascia Colour: White, RAL 9003
  • Dimensions (H x L x W): 32mm x 113mm x 113mm
  • Weight: 0.25 kg
Key Features
  • Selectable tritone colour temperature from 3000K, 4200K or 5700K
  • Fixed, low-profile recessed downlight for residential ceilings
  • High output of up to 1310 lumens
  • IC-4 rated for installation in insulated ceilings when installed as specified
  • IP54 protection from the front for suitable residential wet-area applications
  • Remote phase-cut dimmable driver
  • Wide 100° beam angle for general area lighting
  • Non-user-replaceable LED light source
  • Suitable for shallow-ceiling and refurbishment applications
Professional Installation Requirements
  • Installation must be carried out by a licensed electrician in accordance with the manufacturer's instructions, relevant Australian standards and local regulations. The luminaire must be connected to a 220-240V AC supply and installed with required ceiling clearances.
Applications
  • Bedrooms
  • Living rooms and lounges
  • Dining areas
  • Hallways and entrances
  • Staircases
  • Kitchens and food-preparation areas
  • Bathrooms and ensuites
  • Laundry areas
  • Theatre and games rooms
  • Hotel rooms and general residential area lighting
Standards & Compliance
  • Tested to AS/NZS 60598.2.2:2016 for recessed luminaires and IC-4 insulation-contact applications
Environmental Benefits
  • High efficacy of up to 121 lm/W can reduce energy consumption compared with lower-efficiency lighting
  • Long projected LED life can reduce replacement frequency and associated product waste
  • LED technology provides efficient directional lighting for residential and refurbishment applications
  • Polycarbonate construction supports a lightweight fitting design and reduced material use
Warranty Information

5-year direct replacement warranty, subject to Haneco warranty terms and correct installation by a licensed electrician.

Available Now

Available through Haneco and authorised Australian electrical wholesalers and distributors.
