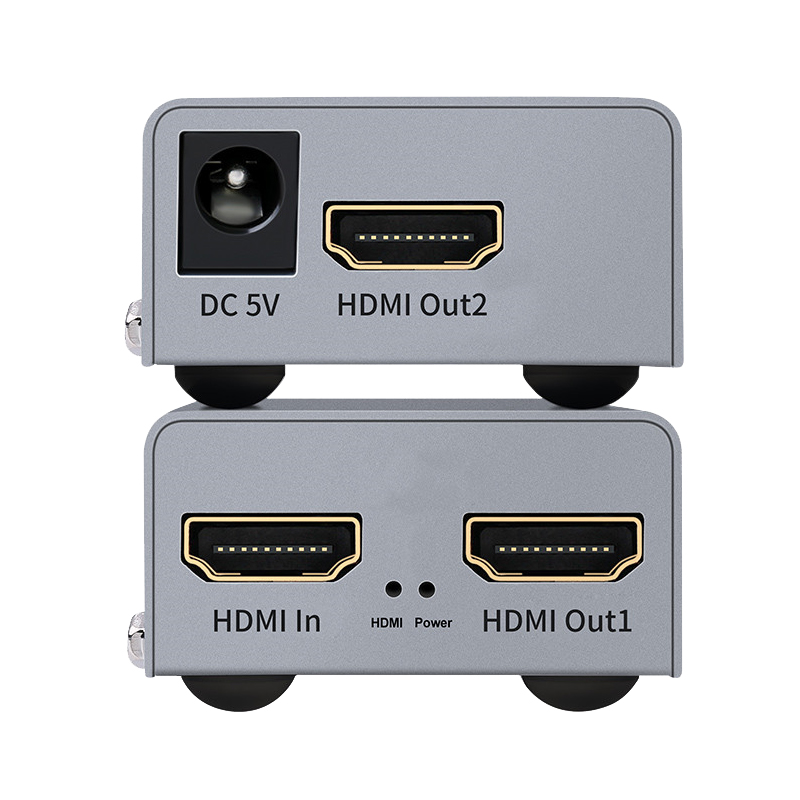

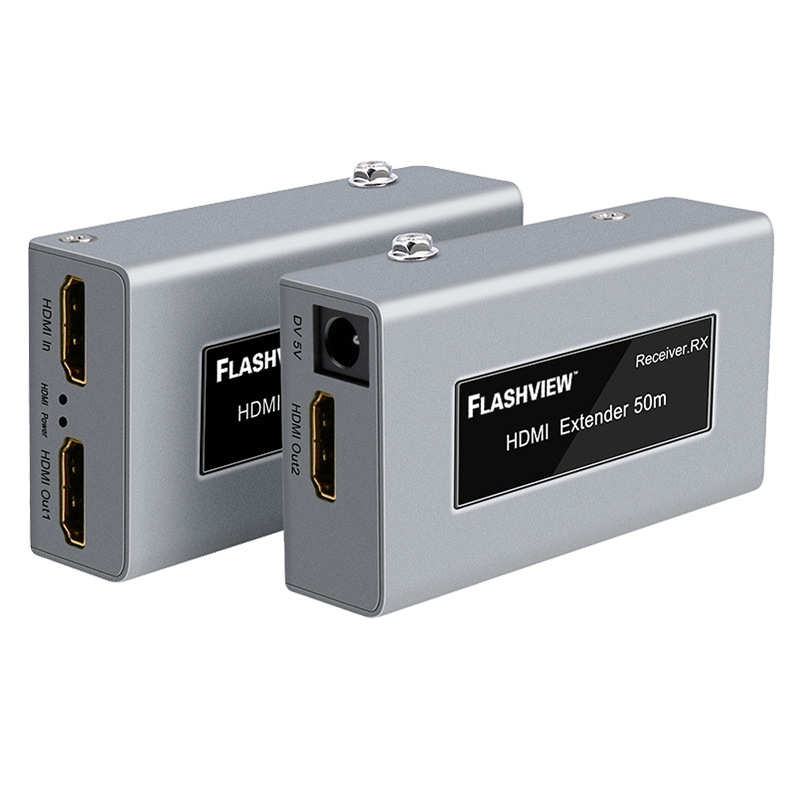

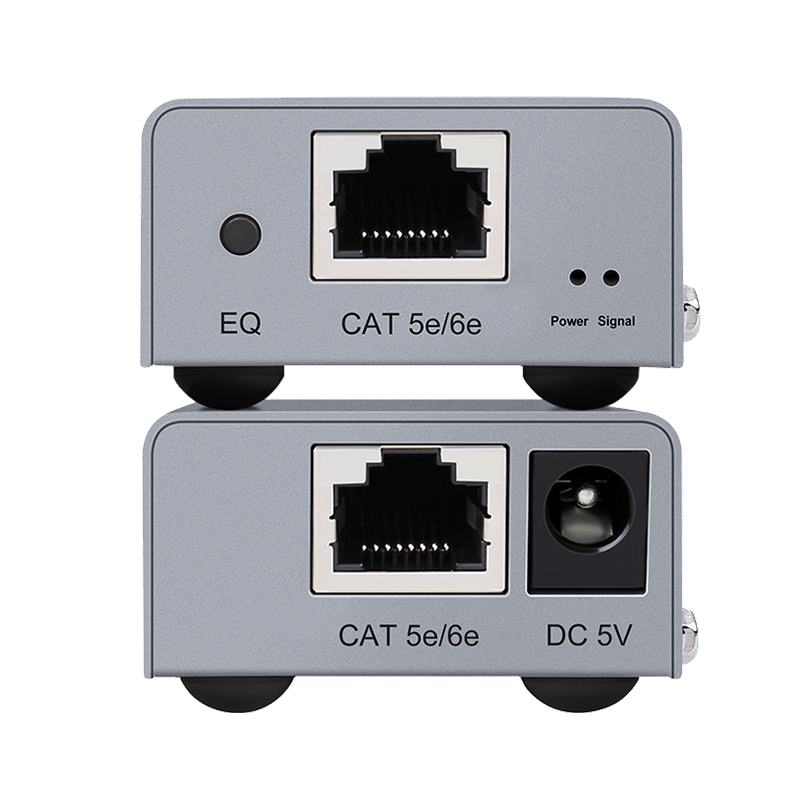

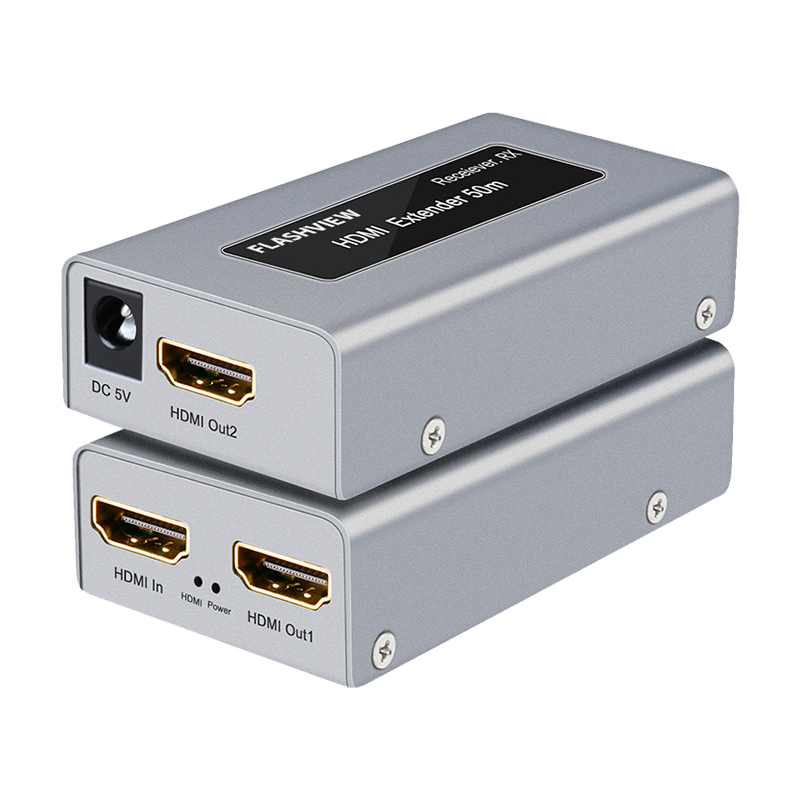

HDMI Extender Over CAT6 | 50m Transmission | Full HD 1080p Support | 3D Video Compatible | by Cornick
The HDMI Extender Over CAT6 allows you to transmit HDMI video and audio over distances up to 50m without any signal loss. Perfect for lecture halls, home theatres, and retail environments, it supports Full HD 1080p resolution and 3D video formats. With a bandwidth of 225MHz/2.5Gbps and easy plug-and-play installation, this extender is designed for high-quality signal transmission in both professional and residential AV setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HDMI Extender Over CAT6 | 50m Transmission | Full HD 1080p Support | 3D Video Compatible | by Cornick
Brand: Cornick
SKU: HDMI-EXT50M
Alternatively Known As: HDMI over CAT6 Extender, HDMI Signal Extender, HDMI Repeater over Ethernet, HDMI Long Distance Extender
Technical Specifications
- Transmission Distance: Up to 50m via CAT6, 50m via CAT5E, 40m via CAT5
- Resolution Support: Up to Full HD 1080p
- Video Formats: Supports 3D video
- Bandwidth: 225MHz / 2.5Gbps
- Power Supply: 2 x 5VDC 1A adapters included
- Installation: Plug-and-play
- Dimensions (H x L x W): 30mm x 80mm x 120mm
- Weight: 0.3 kg
Key Features
- Transmits HDMI video/audio over distances up to 50m via single CAT6 cable without signal loss
- Supports Full HD 1080p resolution and 3D video formats
- Bandwidth up to 225MHz/2.5Gbps for high-quality signal transmission
- Easy plug-and-play installation
- Includes 2 x 5VDC 1A power supplies for transmitter and receiver
Professional Installation Requirements
- Installation is straightforward with plug-and-play design; however, professional installation is recommended for complex setups or integration into existing AV systems.
Applications
- Lecture halls for extended display connectivity
- Home theatres for high-quality video transmission
- Retail environments for digital signage
- Clubs and business foyers for multimedia displays
- Data control centres requiring remote HDMI signal extension
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces the need for long HDMI cables, minimizing material waste
- Supports energy-efficient transmission with low power consumption
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cornick HDMI Extender Over CAT6 (50m) is available now for immediate purchase. Ideal for extending HDMI signals in professional and residential AV setups.
