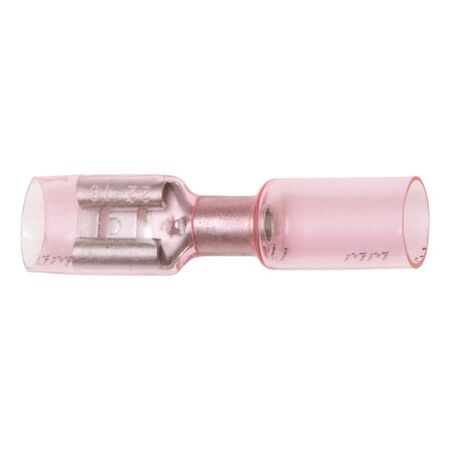

Heat-Shrink Connector 0.5-1.5sqmm IP67 Red Pack of 10 Wurth
Wurth IP67 heat-shrink crimp connector, 0.5-1.5sqmm cable, red. Waterproof, 30kV mm dielectric. Pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Min./max. wire cross section: 0.5-1.5 mm²
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Dielectric strength: 30 kV/mm
- IP protection class: IP67
- Min./max. temperature conditions: -55 to 125 °C
- Minimum shrinkage temperature: 300 °C
- Dimensions (H x L x W): 0.8mm x 25mm x 6.3mm
- Weight: 0.01 kg
Key Features
- Dust-proof and damp-proof connections
- Semi-transparent heat-shrink tubing for straightforward visual monitoring of the connection
- 40% faster shrinking process saves time
- Low risk of damage to connector and cable insulation due to low shrinking temperature
- RoHS-compliant
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Electrical wiring and cable connections requiring secure, dust-proof, and damp-proof insulation
- Automotive, industrial, and household electrical repairs and installations
- Use in environments requiring IP67 rated protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant, ensuring restriction of hazardous substances
- Durable and reliable insulation reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Heat Shrink Crimp Connector Push Connector PSHCON HSHRTUBE RED 0.5-1.5mm² 10 PCS is available now for immediate purchase. Ideal for electrical wiring and insulation applications requiring durable and reliable connections.
