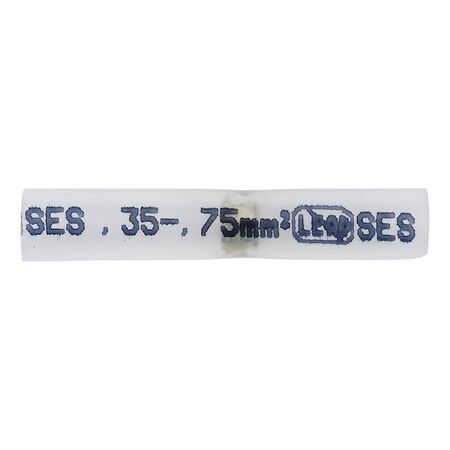

Heatshrink Solder Connector 0.35-0.75mm Pack of 10 White Wurth
Wurth heatshrink solder connector features 0.35-0.75mm. Ideal for electrical cable insulation, sealing and protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Minimum/maximum wire cross section: 0.35-0.75 mm²
- Colour: White
- Dielectric strength: 36 kV/mm
- IP protection class: IP67
- Minimum/maximum temperature conditions: -55 to 110 °C
- Minimum shrinkage temperature: 500 °C
- Length: 27.5 mm
- Dimensions (H x L x W): 6mm x 27.5mm x 6mm
- Weight: 0.01 kg
Key Features
- 100% adhesive-coated heat-shrink tubing for increased safety compared to conventional solder connectors
- Lead-free solder with increased surface tension for higher tensile strength as solder does not disperse rapidly
- Larger internal diameter for more user-friendly application than conventional solder connectors
- Transparent heat-shrink tubing allows straightforward visual inspection of the connection
- RoHS-compliant, lead-free design
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper soldering and heat shrinking for safety and compliance.
Applications
- Electrical wiring and connections requiring secure, insulated solder joints
- Automotive wiring repairs and installations
- Industrial and commercial electrical maintenance
- Marine and outdoor electrical connections requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Lead-free solder reduces hazardous material use and environmental contamination
- RoHS-compliant design ensures reduced environmental impact and safer disposal
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Heat Shrink Solder Connector BUTTCON SLDR HSHRTUBE WHITE 0.35-0.75mm² 10 PCS is available now for immediate purchase. Ideal for electrical wiring and repair applications requiring secure, insulated solder joints.
