Trade Discount 17%

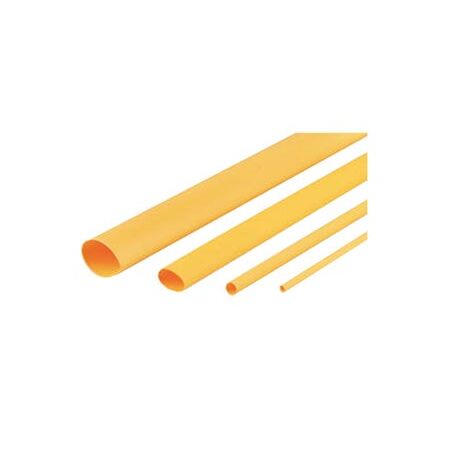

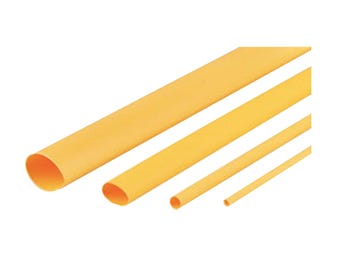

Heatshrink Thin Wall 19MM | Flame Retardant & UV Resistant | 50m Roll by Cabac
Heatshrink thin wall tubing with 19mm pre-shrink diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with UV resistance and flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 19MM Box
Brand: Cabac
SKU: XLP20Y
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Polyolefin Heat Shrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve
Technical Specifications
- Pre-shrink diameter: 19.1mm
- After-shrink diameter: 9.5mm
- Recovered wall thickness: 0.68mm
- Length: 50m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UV Stabilised except clear variants
- Dimensions (H x L x W): 19mm x 50000mm x 19mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Environmental protection against fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting insulation reduces need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components from environmental damage, enhancing system efficiency
Warranty Information
Warranty information not specified; typically covered by manufacturer standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 19MM XLP tubing is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
