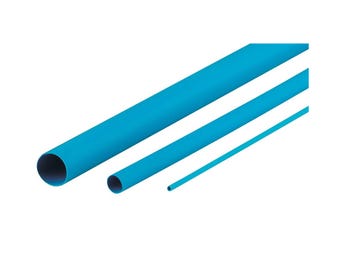

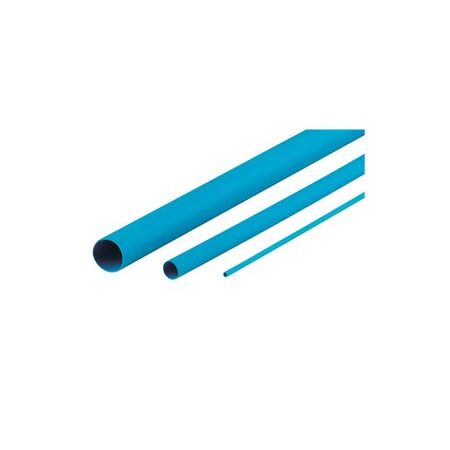

Heatshrink Thin Wall 2.4MM | Flame Retardant | UV Resistant | Blue by Cabac

BRAND: CABAC

SKU: XLP2.5BL

$52.90 List price: $66.10

+ −

30 Days Return Delivery Options

Heatshrink thin wall tubing with 2.4MM diameter and flame retardant properties—ideal for electrical insulation and protection. Built for industrial and residential use, with UV resistance and flexibility.

Description

Product Name/Title: Heatshrink Thin Wall 2.4MM Blue

Brand: Cabac

SKU: XLP2.5BL

Alternatively Known As: Thin Wall Heat Shrink Tubing, Blue Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing

Technical Specifications

Material: Electron Beam Cross Linked Polyolefin
Continuous Operating Temperature: -75 to +135 °C
Shrinkage Temperature: > 105 °C
Longitudinal Shrinkage: < 5%
Tensile Strength: 10.4 MPa
Breakdown Voltage: 25 kV/mm wall thickness
Elongation at Break Point: 400%
Water Absorption: 0.15% max
Voltage Rating: 600V
Heat Shock Resistance: 250 °C for 4 hours
UV Stabilised except clear variants
Dimensions (H x L x W): n/a mm x 200000mm x n/a mm
Weight: 0.1 kg

Key Features

Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
Operating temperature range from -75 to +135 degrees Celsius
Resistant to common fluids, solvents, abrasion, impact and UV radiation
Shrinks to approximately 50% of pre-shrink diameter upon heating
UL certified and compliant with ASTM D2671 and UL224 VW1 standards

Professional Installation Requirements

Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.

Applications

Electrical insulation and protection of conductors
Colour coding in electrical and associated industries
Protection against environmental factors such as fluids and solvents
Mechanical protection in electrical installations

Standards & Compliance

AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Durable and long-lasting material reduces need for frequent replacements
UV resistance extends product life, reducing waste
Protects electrical components, enhancing energy efficiency and safety

Warranty Information

Warranty details are provided by the manufacturer; typically covers manufacturing defects.

Available Now

The Cabac Heatshrink Thin Wall 2.4MM Blue is available for immediate purchase. Ideal for electrical insulation and protection applications in industrial, commercial, and residential settings.
