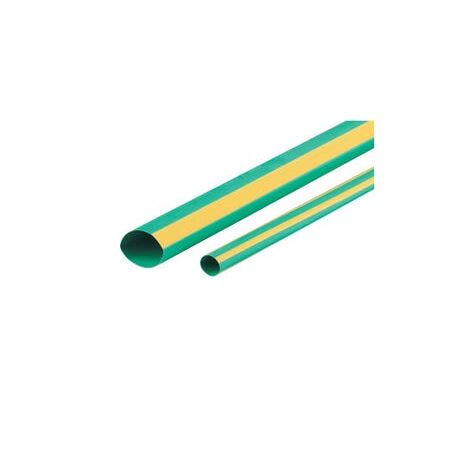

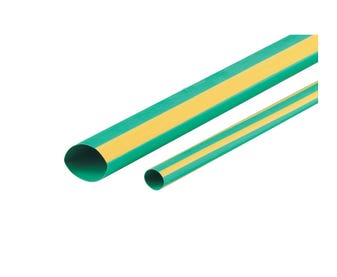

Heatshrink Thin Wall Tubing 76MM | Flame Retardant | Flexible & UV Resistant | Green by Cabac
The Cabac Heatshrink Thin Wall 76MM Yellow/Green Roll is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding, suitable for harsh environments with resistance to UV, abrasion, and solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 76MM Box Green
Brand: Cabac
SKU: XLP76YG
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink, Electrical Insulation Tubing, Heat Shrink Sleeve, Heat Shrink Wrap
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 76.2mm
- After-shrink diameter: 38.1mm
- Recovered wall thickness: 1.2mm
- Length: 25m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 12mm x 25000mm x 762mm
- Weight: 0.2 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Provides electrical and mechanical protection
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
Professional Installation Requirements
- Professional installation recommended to ensure proper heat application and secure fitting using appropriate heat gun tools.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Warranty information not specified; standard manufacturer warranty applies.
Available Now
The Cabac Heatshrink Thin Wall 76MM Yellow/Green Roll is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
