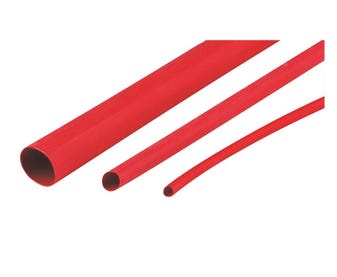

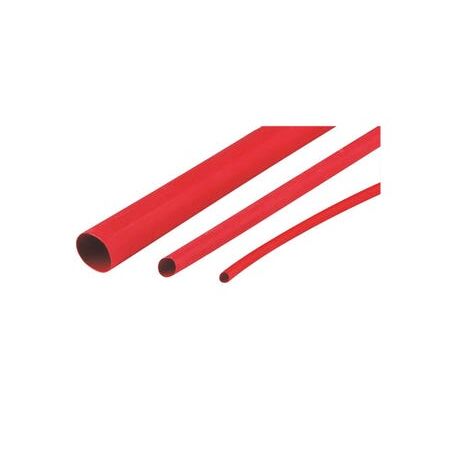

Heatshrink Tubing 4.8MM | Flame Retardant | -75 to +135°C | Red by Cabac
Heatshrink tubing with 4.8MM diameter and flame retardant properties—ideal for electrical insulation and protection. Built for durability, with a wide operating temperature range and resistance to fluids and abrasion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 4.8MM Red 1.2M
Brand: Cabac
SKU: XLP5RD/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Red Heatshrink Sleeve, Polyolefin Heat Shrink, Electrical Insulation Tubing, Heat Shrink Sleeve 4.8mm
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 1200mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, impact, and abrasion
- UV resistant except for clear variant
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and durable
Professional Installation Requirements
- Installation requires heat application using a heat gun; professional installation recommended for electrical safety compliance.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV stabilization extends product life, reducing waste
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Warranty information not specified; standard manufacturer warranty applies.
Available Now
The Cabac Heatshrink Thin Wall 4.8MM Red 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
