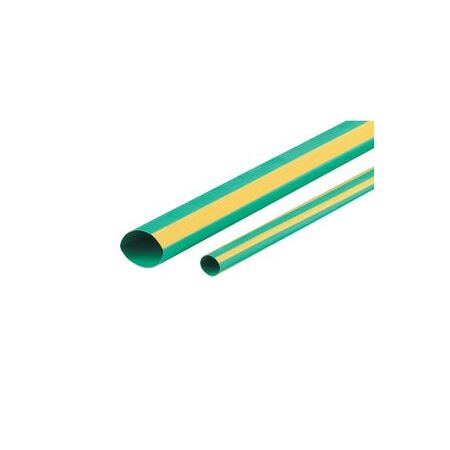

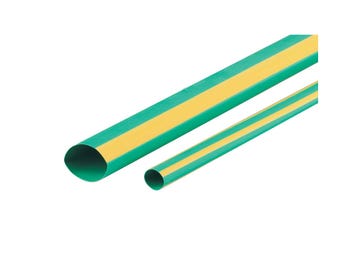

Heatshrink Tubing 9.5MM | Flame Retardant | UV Resistant | 5M Yellow Green by Cabac
Heatshrink tubing with 9.5mm diameter and flame retardant properties—ideal for electrical insulation and protection. Built for harsh environments, with UV resistance and flexibility for easy application.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 9.5MM Yellow Green 5M Box
Brand: Cabac
SKU: XLP10YG-5M
Alternatively Known As: Heat shrink tubing, Thin wall heatshrink, Electrical heat shrink sleeve, Polyolefin heat shrink tubing, Yellow green heatshrink
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 9.5mm
- After-shrink diameter: 4.8mm
- Recovered wall thickness: 0.62mm
- Length: 5 meters
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL224 VW1 File No. E366157 compliant
- ASTM D2671 compliant
- Dimensions (H x L x W): 9.5mm x 5000mm x 9.5mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
- UL certified and compliant with ASTM D2671
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces the need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 9.5MM Yellow Green 5M Box is available now for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
