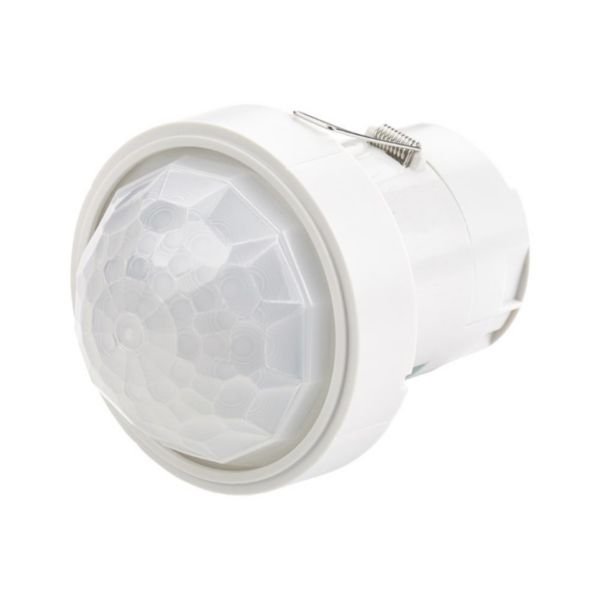

High Bay PIR Presence Detector | 40m Detection Range | IP40 Rated | Flush Mounted | @Each of 1 | by CP Electronics
The High Bay PIR Presence Detector is designed for efficient lighting control in industrial and commercial spaces. With a remarkable detection range of up to 40m at a 15m mounting height and an IP40 rating, it ensures reliable performance in high bay applications. Featuring two ELV switch inputs for manual override, this detector is perfect for warehouses and factories, providing energy savings and enhanced lighting management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Bay PIR Presence Detector | 40m Detection Range | IP40 Rated | Flush Mounted | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: EBDHS-KNX
Alternatively Known As: High Bay PIR Presence Detector, KNX PIR Occupancy Sensor, Flush Mounted PIR Detector, Industrial Presence Detector
Technical Specifications
- Detection range: up to 40m at 15m mounting height
- IP Rating: IP40
- Mounting: Flush mounted with IP40 mounting box
- Inputs: Two ELV switch inputs for manual override
- Programming: KNX ETS software, IR handset, push switch
- Operating temperature: Standard and low temperature (-30°C) versions available
- Background monitoring: No
- Acoustic sensor: No
- Connection cable: Not included
- Dimensions (H x L x W): 50mm x 120mm x 120mm
- Weight: 0.3 kg
Key Features
- High sensitivity and long-range detection up to 40m at 15m mounting height
- IP40 rated for surface mounting with IP40 mounting box
- Two ELV switch inputs for manual override of dimming levels or light on/off
- KNX programming mode accessible via IR handset or push switch
- Programmable logic block for conditional occupancy telegrams
- Full scene selection functionality via UHS7 infrared handset
- Fully programmable using KNX ETS commissioning software
- Available in low temperature -30°C and standard switching/dimming versions
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with KNX systems to ensure proper configuration and compliance with electrical standards.
Applications
- High bay lighting control in warehouses
- Factories with increased mounting heights
- Industrial and commercial spaces requiring presence detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy savings through precise presence detection and lighting control
- Reduces unnecessary lighting usage, lowering power consumption
- Supports sustainable building management with KNX integration
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The CP Electronics KNX IP40 High Bay Flush Mounted PIR Presence/Absence Detector is available for immediate purchase, ideal for industrial and commercial high bay lighting control applications.
