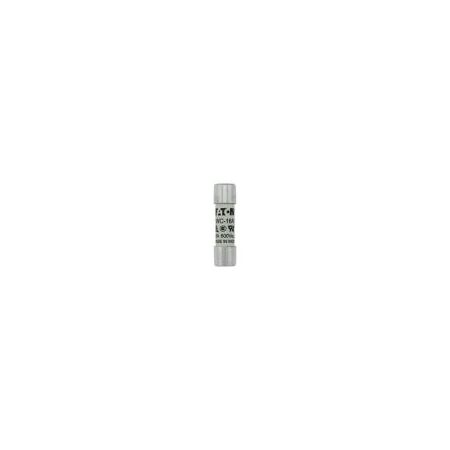

High Speed Fuse 16AMP 600V AC | Ferrule Connection | Ceramic Construction | 200 kA Breaking Capacity | by Eaton
This 16AMP 600V AC high-speed fuse features a ferrule connection and ceramic construction, making it ideal for semiconductor protection and power converters. With a breaking capacity of 200 kA, it ensures reliable performance in critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Speed Fuse 16AMP 600V AC | Ferrule Connection | Ceramic Construction | 200 kA Breaking Capacity | by Eaton
Brand: Eaton
SKU: FWC-16A10F
Alternatively Known As: High speed fuse 16A 600V, Cylindrical fuse 10x38mm, Semiconductor fuse 16A, Eaton Bussmann fuse
Technical Specifications
- Amperage Rating: 16 A
- Rated Voltage AC: 600 V
- Rated Voltage DC: 700 V
- Breaking Capacity AC: 200 kA
- Breaking Capacity DC: 10 kA
- Fuse Size: 10 x 38 mm
- Fuse Shape: Cylindrical
- Material: Ceramic
- Connection: Ferrule end x ferrule end
- Watt Losses: 3.5 W
- Frequency Rating: 45-62 Hz
- Class: aR (accompanied semiconductor protection)
- Fuse Indicator: Other
- Release Characteristic: Other
- Dimensions (H x L x W): 11mm x 38mm x 11mm
- Weight: 0.0088 kg
Key Features
- High speed fuse with ferrule end x ferrule end connection
- Class aR for semiconductor protection
- Ceramic construction for durability
- Non-indicating type
- Breaking capacity of 200 kA at 300 Vdc
- Rated voltage 600 V AC and 700 V DC
- Compact cylindrical fuse shape
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse selection.
Applications
- Semiconductor protection
- DC Common bus
- DC drives
- Power converters/rectifiers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Warranty as per Eaton standard terms and conditions.
Available Now
The Eaton 16AMP 600V AC High Speed Cylindrical Fuse 10x38mm is available now for immediate purchase. Ideal for semiconductor and power converter protection applications.
