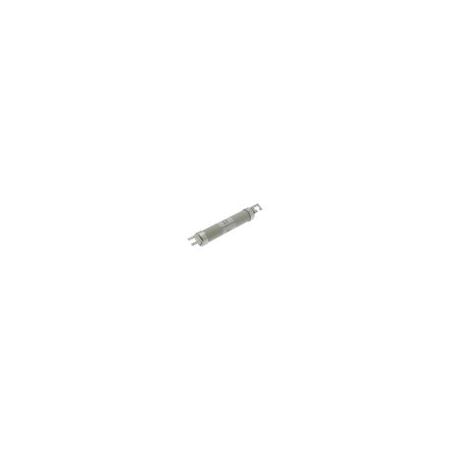

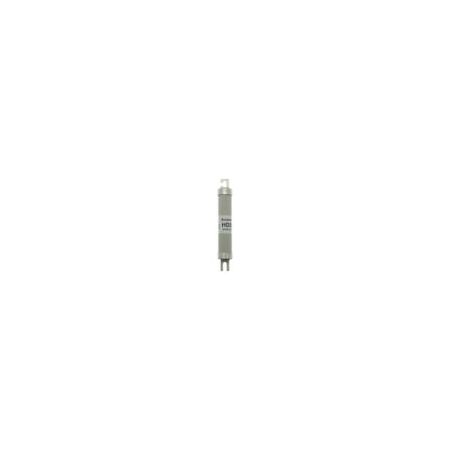

High Speed Industrial Fuse 10A | 1200V AC & 750V DC | 80 kA Breaking Capacity | RoHS Compliant by Eaton
High speed industrial fuse rated at 10A with a voltage capacity of 1200V AC and 750V DC—ideal for industrial electrical systems. Built for reliable protection in traction and transportation circuits, with a breaking capacity of 80 kA and RoHS compliance for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Speed Industrial Fuse 10A | 1200V AC & 750V DC | 80 kA Breaking Capacity | RoHS Compliant by Eaton
Brand: Eaton
SKU: 10HD36
Alternatively Known As: High Speed Fuse 10A, Industrial Fuse 10 Amp, 10A 1200V Fuse, Eaton Bussmann Fuse
Technical Specifications
- Amperage Rating: 10 A
- Voltage Rating: 1200 V AC, 750 V DC
- Fuse Type: High speed fuse-link
- Dimensions: 22 x 138 mm
- Breaking Capacity: 80 kA
- Watt Losses: 2.2 W
- Certification: BS
- Compliance: RoHS
- Dimensions (H x L x W): 138mm x 118mm x 22mm
- Weight: 0.0934 kg
Key Features
- High-speed fuse-link for rapid disconnection
- Rated for 10 A current
- Voltage rating of 1200 V AC and 750 V DC
- Breaking capacity of 80 kA
- Watt losses of 2.2 W
- Complies with BS certification standards
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse selection.
Applications
- Industrial electrical systems requiring high-speed fuse protection
- Traction and transportation electrical circuits
- AC and DC power distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Designed for long service life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's warranty policy for details.
Available Now
The Eaton 10AMP High Speed Industrial Fuse is available for immediate purchase, ideal for industrial and traction electrical protection applications.
