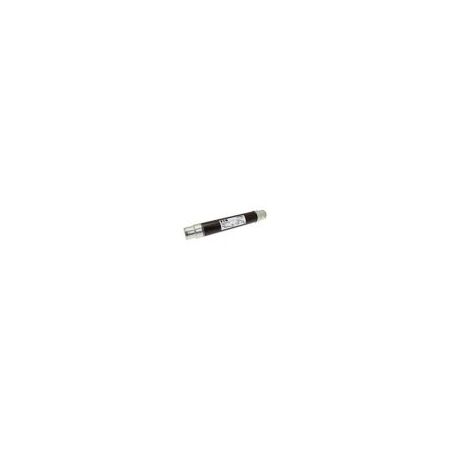

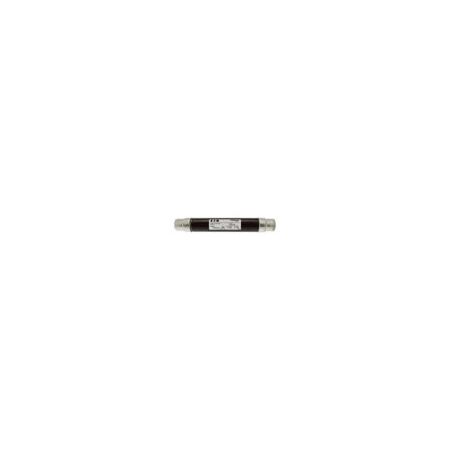

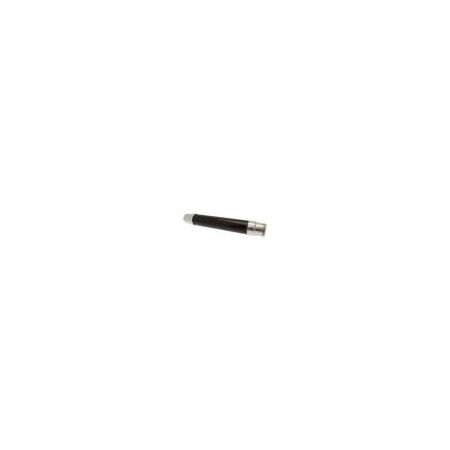

Medium Voltage DIN Fuse 50A | 12kV AC | High Breaking Capacity & Brown Resin Seal | Eaton
This medium voltage DIN fuse features a 50A amperage rating and a 12kV AC voltage rating—ideal for transformer protection in industrial settings. Built for safety and durability, it includes a striker for fuse indication and a robust brown resin seal.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Medium Voltage DIN Fuse 50A | 12kV AC | High Breaking Capacity & Brown Resin Seal | Eaton
Brand: Eaton
SKU: 12TDLEJ50
Alternatively Known As: 12kV DIN Fuse, 50 Amp Resin Seal Fuse, Medium Voltage DIN Fuse, Transformer Protection Fuse
Technical Specifications
- Amperage Rating: 50 A
- Voltage Rating: 12 kV AC
- Fuse Size: 51 x 292 mm
- Breaking Capacity: 63 kA
- Fuse Indicator: With Striker
- Installation Technique: Air
- Performance Category: Back-up
- Resistance: 13.5 Ohms
- Watt Losses: 47 W
- Mounting Method: Clip-in
- Construction Type: Bolt-on
- Fuse Type: TDLEJ
- Rated Frequency: 50 Hz
- Interrupt Rating: 63 kAIC
- Color: Brown
- Dimensions (H x L x W): 54mm x 292mm x 51mm
- Weight: 1.5 kg
Key Features
- Medium voltage DIN fuse with 50 A amperage rating
- 12 kV AC voltage rating
- Back-up fuse type with striker for fuse indication
- Bolt-on construction type with clip-in mounting method
- High breaking capacity of 63 kA
- Suitable for air installation technique
- Brown resin seal for durability and safety
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional familiar with medium voltage equipment and safety standards.
Applications
- Primary side transformer protection
- Transformer protection for indoor or outdoor use
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable resin seal reduces risk of environmental contamination
- Long service life reduces waste and replacement frequency
Warranty Information
Warranty details available upon request from Eaton, typically covering manufacturing defects.
Available Now
The Eaton 12KV 50Amp 2" DIN Brown Resin Seal Fuse is available now for immediate purchase. Ideal for transformer protection in industrial and utility applications.
