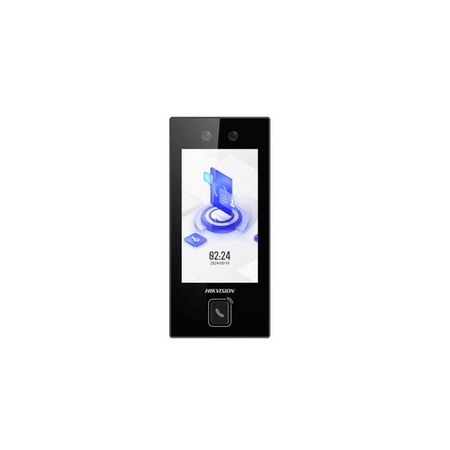

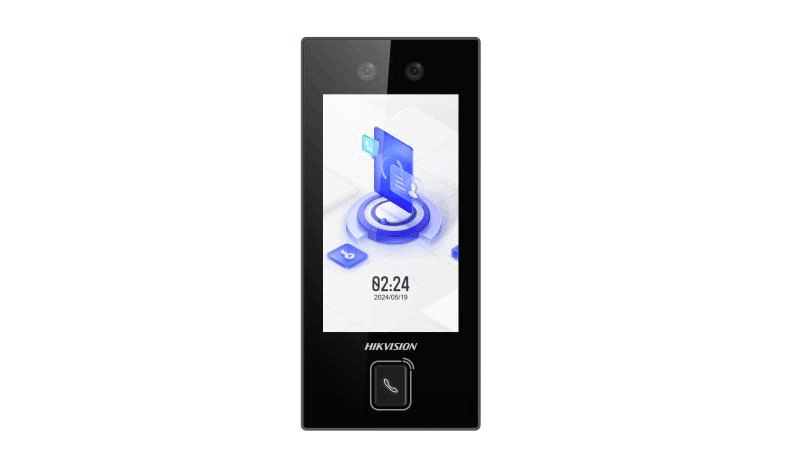

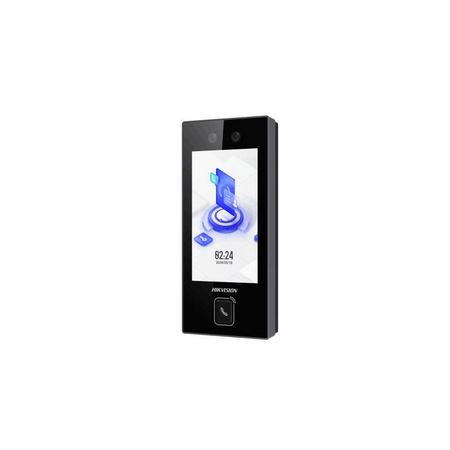

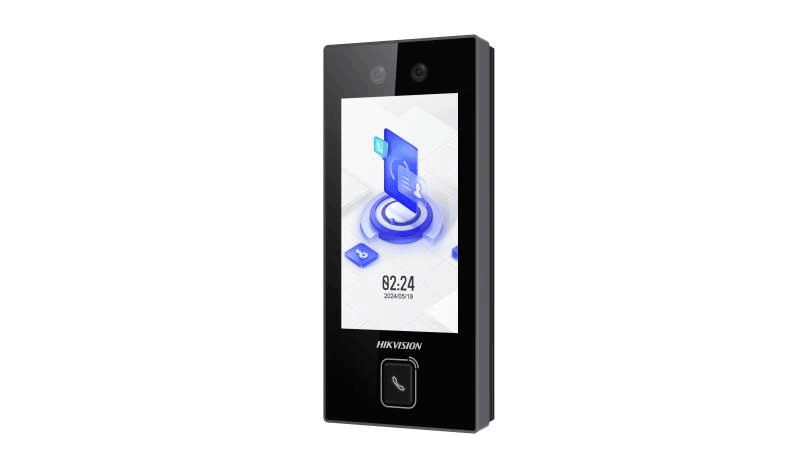

HIKVISION Access Control Terminal | 4.5" LCD Touch Screen | 2MP Camera & 3000 Faces Capacity | IP65 Rated | by HIKVISION
The HIKVISION Access Control Terminal features a 4.5-inch LCD touch screen and a 2MP wide-angle camera, making it ideal for secure access control in commercial buildings. With a capacity for 3000 faces and cards, it offers fast recognition in less than 0.2 seconds, ensuring efficient security management. This terminal supports multiple authentication methods, including face, card, and PIN, and is designed for professional installation to meet safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION Access Control Terminal | 4.5" LCD Touch Screen | 2MP Camera & 3000 Faces Capacity | IP65 Rated | by HIKVISION
Brand: HIKVISION
SKU: DS-K1T344MBWX-E1
Alternatively Known As: HIKVISION Face Recognition Terminal, K1T344MBWX-E1 Access Control Panel, HIKVISION Biometric Access Terminal
Technical Specifications
- Screen: 4.5-inch LCD touch screen
- Camera: 2 Mega pixel wide-angle lens
- Face Capacity: 3000 faces
- Card Capacity: 3000 cards
- Face Recognition Distance: 0.3 m to 1.5 m
- Recognition Duration: less than 0.2 seconds per user
- Accuracy Rate: ≥ 99%
- Authentication Methods: Face, card, PIN
- Audio: Two-way audio with client software, indoor and main stations
- Buttons: Physical and touch buttons supported
- Configuration: Mobile web and PC web
- Power Supply: 12 VDC or Power over Ethernet (PoE)
- Door Lock Power Support: Yes
- Ingress Protection: IP65 rated
- Dimensions (H x L x W): 180mm x 40mm x 120mm
- Weight: 0.5 kg
Key Features
- Supports 4.5-inch LCD touch screen with 2 Mega pixel wide-angle lens
- Built-in M1 card reading module
- Max. 3000 faces and 3000 cards capacity
- Face recognition distance from 0.3 m to 1.5 m with accuracy rate ≥ 99%
- Supports face, card, and PIN authentication
- Two-way audio communication with client software, indoor and main stations
- Physical and touch button support
- Configuration via mobile web and PC web
- Powered by 12 VDC or PoE, supports powering device and door lock
Professional Installation Requirements
- Professional installation by a qualified security systems technician or electrician is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Access control for commercial buildings
- Security management in offices and facilities
- Employee attendance and authentication systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient PoE power supply reduces electrical consumption
- Supports paperless authentication methods reducing waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The HIKVISION ACCESS K1T344MBWX-E1 Control Terminal is available for immediate purchase, ideal for secure access control in commercial and industrial environments.
