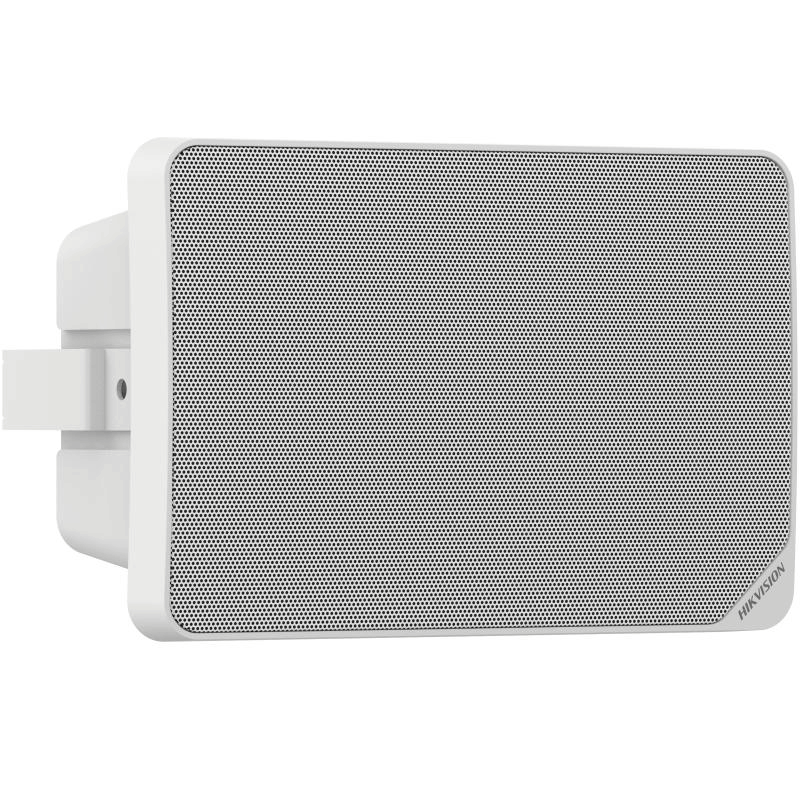

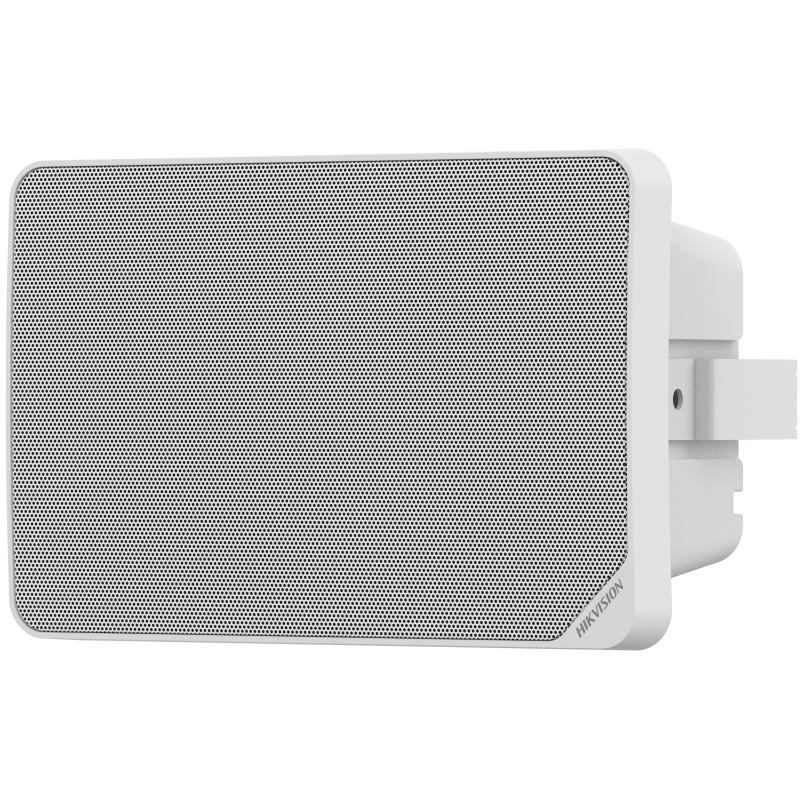

HIKVISION Audio Analogue Cabinet Speaker | 5.25 Inch Unit | 90 dB Sensitivity | 103 dB SPL | White or Black Finish | by HIKVISION
The HIKVISION Audio Analogue Cabinet Speaker is designed for versatile audio applications, featuring a 5.25-inch speaker unit with multiple power options (5W, 10W, 15W, 20W) and a sensitivity of 90 dB. Ideal for public address systems in commercial buildings, this speaker delivers clear sound with a maximum SPL of 103 dB and a wide frequency response from 130 Hz to 17.5 kHz. Available in white or black, it combines aesthetic flexibility with energy-efficient design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION Audio Analogue Cabinet Speaker | 5.25 Inch Unit | 90 dB Sensitivity | 103 dB SPL | White or Black Finish | by HIKVISION
Brand: HIKVISION
SKU: DS-QAE0120G1R
Alternatively Known As: Analogue Cabinet Speaker, Surface Mount Speaker, Public Address Speaker
Technical Specifications
- Speaker Unit Size: 5.25 inches
- Rated Power: 5 W/10 W/15 W/20 W at 70 V and 100 V
- Sensitivity: 90 dB ± 3 dB (1 m, 1 W)
- Maximum SPL: 103 dB
- Frequency Response: 130 Hz to 17.5 kHz
- Color Options: White or Black
- Dimensions (H x L x W): 150mm x 150mm x 200mm
- Weight: 1.5 kg
Key Features
- 5.25 inch speaker unit
- Multiple rated power options: 5 W, 10 W, 15 W, 20 W at 70 V and 100 V
- Sensitivity of 90 dB ± 3 dB at 1 meter, 1 watt
- Maximum sound pressure level of 103 dB
- Wide frequency response from 130 Hz to 17.5 kHz
- Available in white or black finish for aesthetic flexibility
Professional Installation Requirements
- Installation by a qualified audio or electrical technician is recommended to ensure optimal performance and compliance with safety standards.
Applications
- Public address systems in commercial buildings
- Background music in retail and hospitality venues
- Paging and announcement in schools and offices
Standards & Compliance
- Complies with AS/NZS 60065 – Audio, video and similar electronic apparatus - Safety requirements
Environmental Benefits
- Energy-efficient design reduces power consumption during operation
- Durable construction minimizes waste and replacement frequency
Warranty Information
3 years warranty from the date of purchase covering manufacturing defects.
Available Now
The HIKVISION Audio Analogue Cabinet Speaker Surface Mount is available for immediate purchase, ideal for public address and commercial audio applications.
