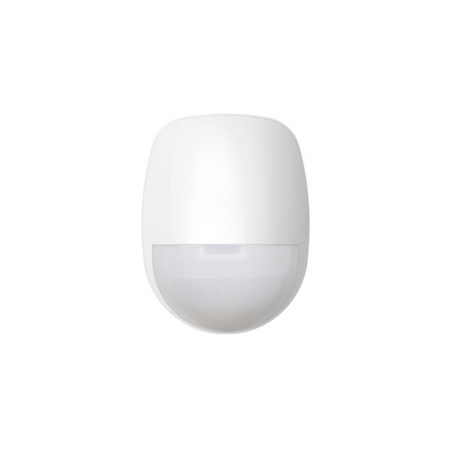

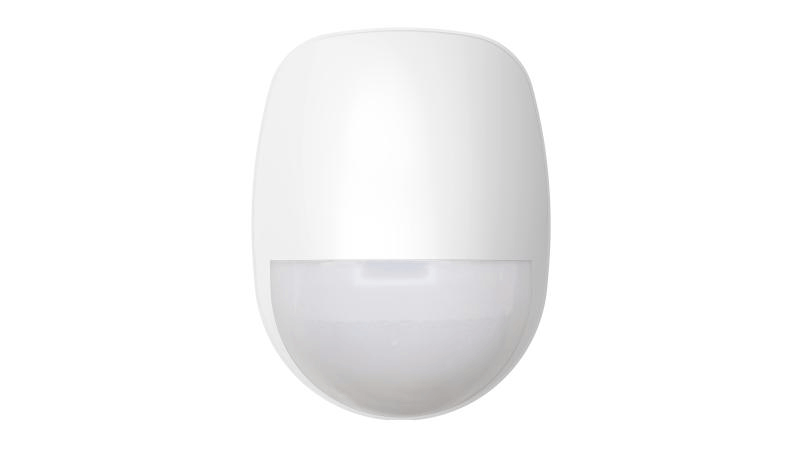

HIKVISION AX Hybrid Pro Pet Immune PIR Detector | 18M Range | Digital Temperature Compensation | Automatic Sensitivity Adjustment | by HIKVISION
The HIKVISION AX Hybrid Pro Pet Immune PIR Detector offers an impressive 18M detection range with digital temperature compensation and automatic sensitivity adjustment. Perfect for indoor security in both residential and commercial spaces, this detector adapts to environmental changes, ensuring reliable performance. With its advanced 3D optics and anti-insect interference protection, it provides comprehensive coverage and minimizes false alarms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION AX Hybrid Pro Pet Immune PIR Detector | 18M Range | Digital Temperature Compensation | Automatic Sensitivity Adjustment | by HIKVISION
Brand: HIKVISION
SKU: DS-PDP18-EG2-B
Alternatively Known As: Pet Immune PIR Motion Detector, Hybrid PIR Sensor, Indoor Motion Detector, HIKVISION PDP18-EG2
Technical Specifications
- Detection range: Up to 18 meters volumetric coverage
- Digital temperature compensation maintains sensitivity near body temperature
- Automatic sensitivity adapts to environmental changes
- 3D optics focus infra-red signals onto pyro-electric sensor
- Selectable EOL resistor values: 1K, 2K2, 4K7, 5K6, 8K2 for alarms and tamper
- Operating voltage: 9 to 16 V with polarity reverse protection
- IFT technology adjusts alarm trip thresholds to prevent false alarms
- Mounting height: 1.8m to 2.4m, wall or ceiling mount
- Dimensions (H x L x W): 110mm x 45mm x 60mm
- Weight: 0.2 kg
Key Features
- Up to 18m volumetric detection coverage
- Digital temperature compensation for stable sensitivity
- Automatic sensitivity adjustment to environmental changes
- 3D optics for improved detection of moving targets
- Creep-zone protection covering blind spots below detector
- Selectable EOL resistors compatible with most control panels
- Wall and ceiling mount options with 1.8m to 2.4m mounting height
- Anti-insect interference protection
- Wide voltage adaptation (9 to 16 V) with polarity reverse protection
- IFT technology to prevent false alarms from electromagnetic interference
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Indoor security for small to large rooms and spaces
- Residential and commercial intruder detection
- Wall and ceiling mounting for versatile installation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Long-lasting design minimizes electronic waste
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The HIKVISION AX HYBRID PRO PDP18-EG2 Pet Immune PIR Detector is available now for immediate purchase. Ideal for enhancing indoor security in residential and commercial environments.
