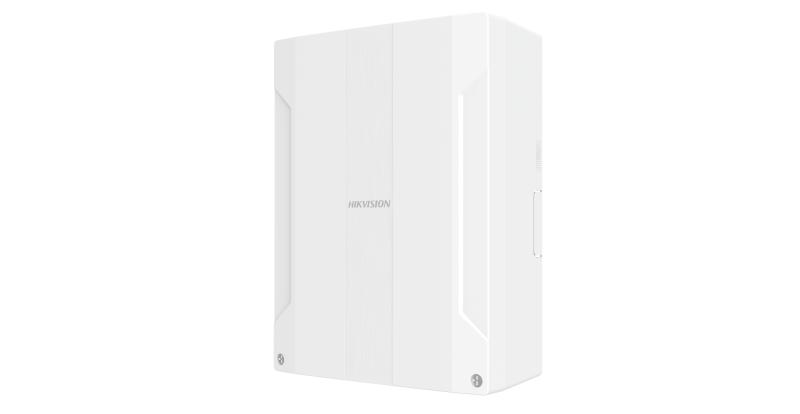

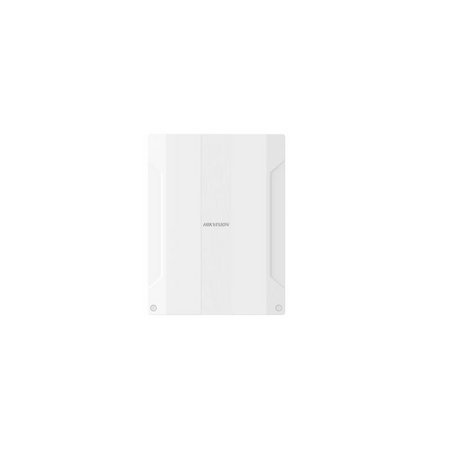

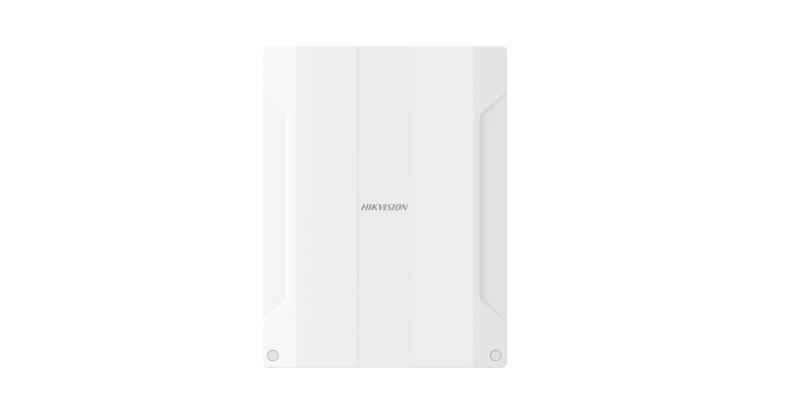

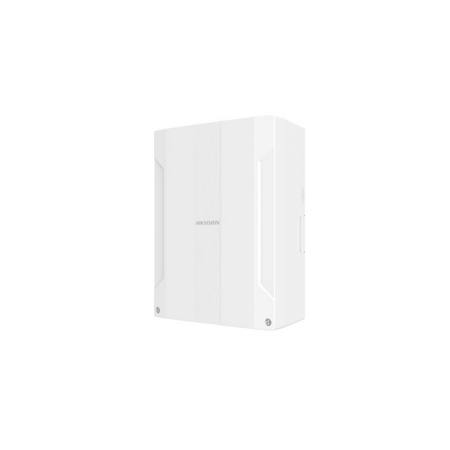

HIKVISION AX PRO Multi IO Transmitter | 433MHz Wireless | 16 Inputs & 2 Outputs | LED Display | by HIKVISION
The HIKVISION AX PRO Multi IO Transmitter features 433MHz two-way wireless communication, making it perfect for wireless intrusion alarm systems. With 16 onboard inputs and 2 outputs for wired detectors, plus a real-time LED display, this device is designed for both commercial and residential security installations. Its efficient design minimizes cabling needs, ensuring a streamlined setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION AX PRO Multi IO Transmitter | 433MHz Wireless | 16 Inputs & 2 Outputs | LED Display | by HIKVISION
Brand: HIKVISION
SKU: DS-PM1-I16O2-WB
Alternatively Known As: Multi IO Transmitter, Wireless IO Module, AX PRO Transmitter
Technical Specifications
- Frequency: 433MHz two-way wireless communication
- Inputs: 16 onboard inputs for wired detectors
- Outputs: 2 onboard outputs
- Power Outputs: Two 12V outputs for external wired detectors
- Display: LED display for real-time status indication
- Backup: Large space for backup storage battery
- Dimensions (H x L x W): 100mm x 40mm x 150mm
- Weight: 0.5 kg
Key Features
- 433MHz two-way wireless communication
- LED display shows real-time device status
- 16 onboard inputs and 2 outputs for wired detector connections
- Two 12V power outputs to power external wired detectors
- Large space for backup storage battery
Professional Installation Requirements
- Professional installation by a qualified security system technician or electrician is recommended to ensure proper integration and compliance with safety standards.
Applications
- Wireless intrusion alarm systems
- Security systems requiring multiple wired detector connections
- Commercial and residential security installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless communication reduces the need for extensive cabling, minimizing material waste.
- Low power consumption design supports energy efficiency.
Warranty Information
2 years warranty from the date of purchase covering manufacturing defects.
Available Now
The HIKVISION AX PRO PM1-I16O2-WB Multi IO Transmitter is available for immediate purchase, ideal for enhancing wireless intrusion alarm systems in commercial and residential settings.
