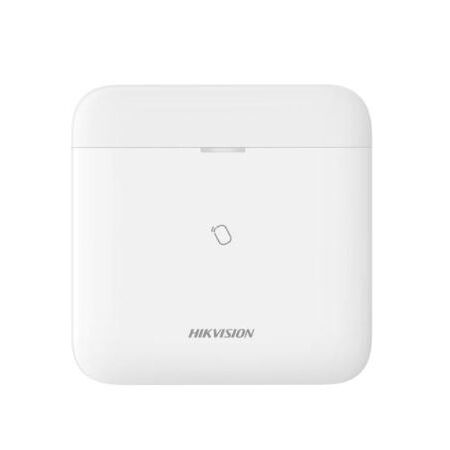

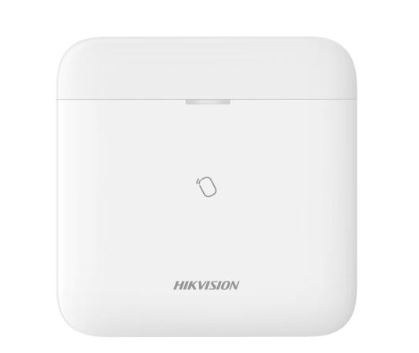

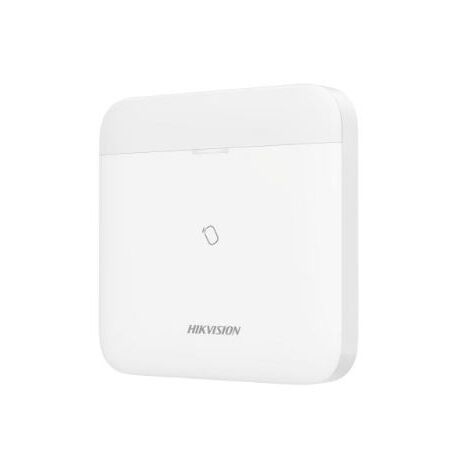

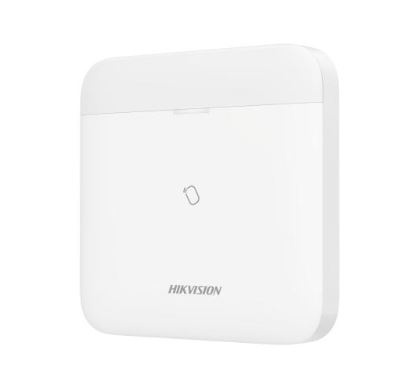

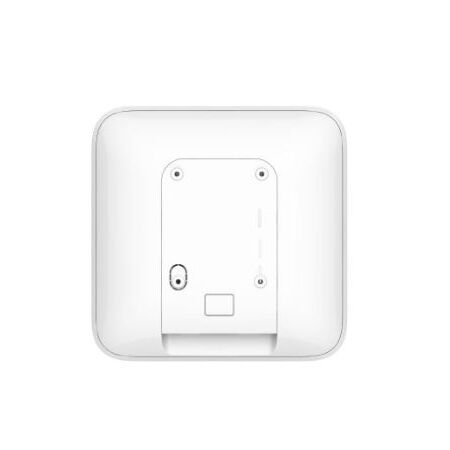

HIKVISION AX PRO PWA96-M Wireless Alarm Hub | TCP/IP & Wi-Fi | AES-128 Encryption | Up to 96 Zones | by HIKVISION
The HIKVISION AX PRO PWA96-M Wireless Alarm Hub offers robust security with TCP/IP, Wi-Fi, and 3/4G connectivity, making it ideal for residential, commercial, and industrial applications. With support for up to 96 wireless zones and AES-128 encrypted communication, it ensures reliable performance and user-friendly operation. Enjoy features like live video viewing, alarm notifications, and a powerful 4520 mAh backup battery for uninterrupted security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION AX PRO PWA96-M Wireless Alarm Hub | TCP/IP & Wi-Fi | AES-128 Encryption | Up to 96 Zones | by HIKVISION
Brand: HIKVISION
SKU: DS-PWA96-M-WB
Alternatively Known As: Wireless Alarm Hub, Wireless Security Control Panel, AX PRO Alarm Hub, HIKVISION Wireless Intrusion Alarm
Technical Specifications
- Network: TCP/IP, Wi-Fi, 3/4G
- Wireless Protocol: Tri-X/Cam-X
- Encryption: AES-128 two-way communication
- Zones/Outputs: Up to 96 wireless zones including 48 PIRCAMs
- User Support: 48 network users (1 installer, 1 admin, 46 normal users)
- Backup Battery: 4520 mAh lithium
- Protocols Supported: SIA-DC09, Contact ID, SIA data format
- Notification: Alarm notifications via messages and phone calls
- Video: Live view and alarm clips via Hik-Connect
- Configuration: Web client, mobile client, Convergence Cloud
- LED Indicator: System status display
- Dimensions (H x L x W): 200mm x 70mm x 250mm
- Weight: 1.5 kg
Key Features
- Supports TCP/IP, Wi-Fi, and 3/4G network connectivity
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance with two-way AES-128 encrypted communication
- Connects up to 96 wireless zones/outputs including 48 PIRCAMs
- Supports 48 wireless keyfobs, 4 repeaters, 6 sounders (3 internal + 3 external), 8 tag readers & keypads
- Supports up to 48 network users with different access levels
- Voice prompt for user interaction
- Configuration via Web client, mobile client, and Convergence Cloud
- Pushes alarm notifications via messages or phone calls
- Live video viewing and alarm video clips via Hik-Connect app and email
- LED indicator for system status
- 4520 mAh lithium backup battery
- Supports SIA-DC09 protocol with Contact ID and SIA data format
- Compatible with Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Residential security systems
- Commercial and retail premises alarm systems
- Industrial facility intrusion detection
- Remote monitoring and alarm management
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless technology reduces the need for extensive cabling and associated material waste
- Energy-efficient design with lithium backup battery for reduced power consumption
- Supports remote monitoring reducing the need for physical site visits
Warranty Information
2 years warranty covering manufacturing defects and hardware failures.
Available Now
The HIKVISION AX PRO PWA96-M Wireless Alarm Hub is available for immediate purchase, ideal for residential, commercial, and industrial security applications.
