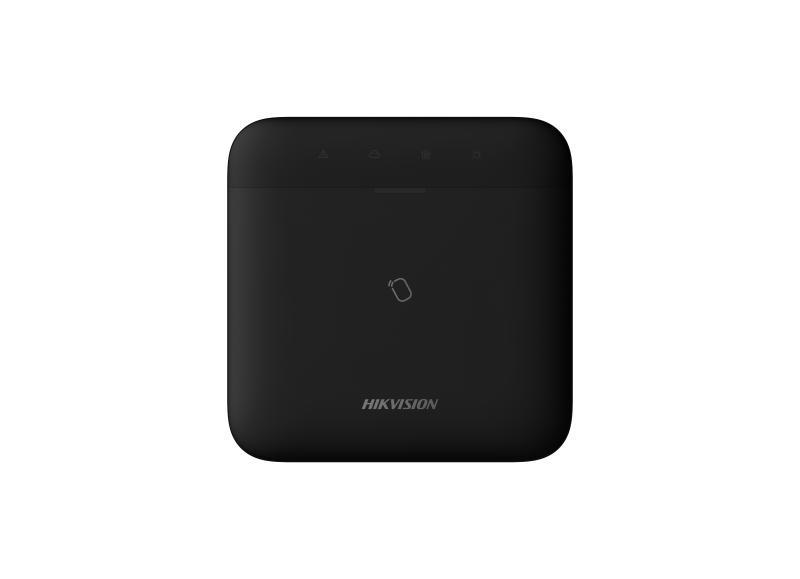

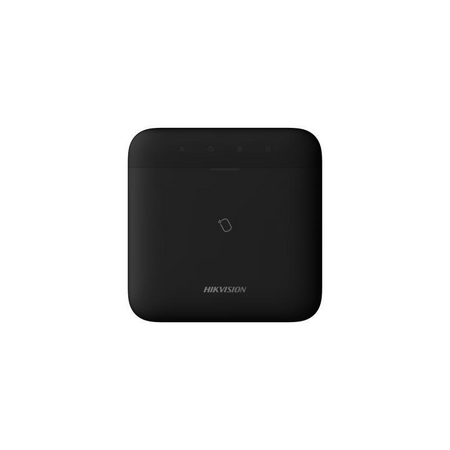

HIKVISION AX PRO PWA96-M Wireless Alarm Hub | Tri-X/Cam-X Protocol | AES-128 Encryption | Up to 96 Zones | by HIKVISION
The HIKVISION AX PRO PWA96-M Wireless Alarm Hub offers robust security with Tri-X/Cam-X protocol and AES-128 encryption, making it ideal for residential, commercial, and industrial applications. With the capability to connect up to 96 zones, including 48 PIRCAMs, this hub ensures comprehensive monitoring and control. Designed for ease of use, it supports TCP/IP, Wi-Fi, and 3/4G connectivity, providing reliable alarm notifications and remote management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION AX PRO PWA96-M Wireless Alarm Hub | Tri-X/Cam-X Protocol | AES-128 Encryption | Up to 96 Zones | by HIKVISION
Brand: HIKVISION
SKU: DS-PWA96-M-WB-BLK
Alternatively Known As: Wireless Security Alarm Hub, AX PRO Alarm Controller, HIKVISION Wireless Alarm Panel
Technical Specifications
- Network: TCP/IP, Wi-Fi, 3/4G
- Wireless Protocol: Tri-X/Cam-X
- Encryption: AES-128 two-way communication
- Wireless Zones/Outputs: Up to 96 (including 48 PIRCAMs)
- User Support: Up to 48 network users
- Backup Battery: 4520 mAh lithium
- Alarm Notification: Messages and phone calls
- Configuration: Web client, mobile client, Convergence Cloud
- Protocols Supported: SIA-DC09, Contact ID, SIA data format
- Dimensions (H x L x W): 50mm x 200mm x 250mm
- Weight: 1.5 kg
Key Features
- Supports TCP/IP, Wi-Fi, and 3/4G network connectivity
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance with two-way AES-128 encrypted communication
- Connects up to 96 wireless zones/outputs including 48 PIRCAMs
- Supports 48 wireless keyfobs, 4 repeaters, 6 sounders (3 internal + 3 external), 8 tag readers & keypads
- Supports up to 48 network users with different access levels
- Voice prompt and LED indicator for system status
- Configuration via Web client, mobile client, and Convergence Cloud
- Pushes alarm notifications via messages or phone calls
- Supports live video viewing and alarm video clips via Hik-Connect
- 4520 mAh lithium backup battery for power resilience
- Supports SIA-DC09 protocol with Contact ID and SIA data format
- Compatible with Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
Professional Installation Requirements
- Professional installation by a licensed security system installer is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Residential security systems
- Commercial security installations
- Industrial premises alarm monitoring
- Remote property security management
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Wireless technology reduces the need for extensive cabling and associated material waste
- Energy-efficient design with lithium backup battery to reduce power consumption
Warranty Information
2 years warranty provided by the manufacturer.
Available Now
The HIKVISION AX PRO PWA96-M Wireless Alarm Hub is available for immediate purchase, ideal for enhancing security in residential, commercial, and industrial environments.
