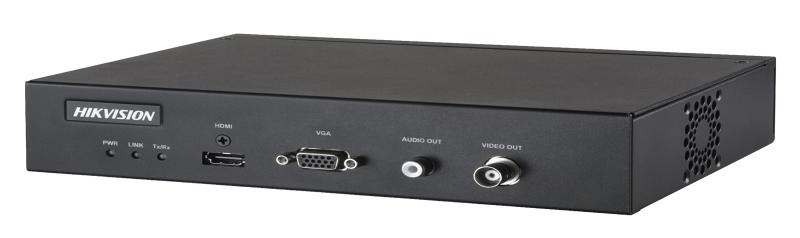

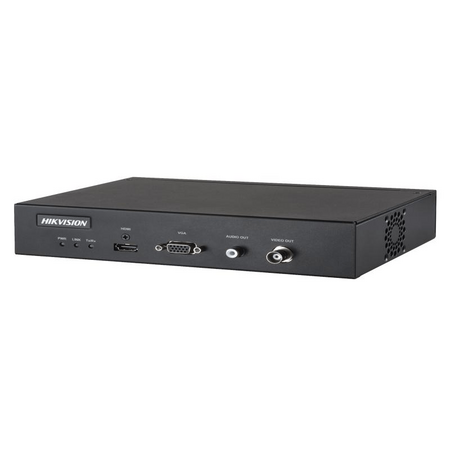

HIKVISION DS-6901UDI Single Channel Video Decoder | 4K Resolution | HDMI, VGA, BNC Outputs | by HIKVISION
The HIKVISION DS-6901UDI Single Channel Video Decoder delivers stunning 4K resolution for your video surveillance needs, featuring HDMI, VGA, and BNC outputs. Perfect for security monitoring and video wall management, it supports multiple video and audio compression formats, ensuring seamless integration with existing systems. Ideal for professionals seeking reliable performance in advanced security applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION DS-6901UDI Single Channel Video Decoder | 4K Resolution | HDMI, VGA, BNC Outputs | by HIKVISION
Brand: HIKVISION
SKU: DS-6901UDI
Alternatively Known As: HIKVISION Video Decoder, DS-6901UDI Video Decoder, Single Channel Video Decoder, 4K Video Decoder
Technical Specifications
- Video Output Interfaces: HDMI, VGA, BNC
- Maximum Resolution: 4K (3840 × 2160@30Hz) via HDMI
- Video Compression: H.265+/H.265, H.264+/H.264, Hik264, MPEG4, MJPEG
- Audio Compression: G.722, G711A, G726, G711U, MPEG2-L2, AAC
- Decoding Modes: Active and Passive
- Supports PS, RTP, TS, ES, HIK encapsulation formats
- Encoding Levels: Baseline, Main, High-profile
- Supports multi-screen control and video wall display
- Supports two-way audio communication
- Port Aggregation Technology (Ethernet Channel)
- Dimensions (H x L x W): 45mm x 180mm x 210mm
- Weight: 1.5 kg
Key Features
- Provides HDMI, VGA, and BNC output interfaces
- Supports up to 4K (3840 × 2160@30Hz) resolution via HDMI
- Supports multiple video compression formats including H.265+/H.265, H.264+/H.264, Hik264, MPEG4, and MJPEG
- Supports multiple audio compression formats including G.722, G711A, G726, G711U, MPEG2-L2, and AAC
- Two decoding modes: active decoding and passive decoding
- Supports two-way audio via client software
- Multi-screen control with PC installed with RSC server
- Configurable LED width and height parameters for LED connection
- Supports regular and irregular virtual screen configuration
- Accessible by 2.4 MP DeepinView and thermal network cameras
- Port aggregation technology (Ethernet Channel)
Professional Installation Requirements
- Installation by a qualified technician or security system professional is recommended to ensure proper configuration and integration with existing surveillance systems.
Applications
- Video surveillance systems for security monitoring
- Video wall display management in control rooms
- Remote video decoding and streaming for security operations
- Integration with thermal and DeepinView cameras for advanced monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Efficient video compression reduces bandwidth and storage requirements, lowering energy consumption in data centers.
Warranty Information
3 years warranty provided by the manufacturer.
Available Now
The HIKVISION DS-6901UDI Single Channel Decoder is available for immediate purchase, ideal for advanced video surveillance and security monitoring applications.
