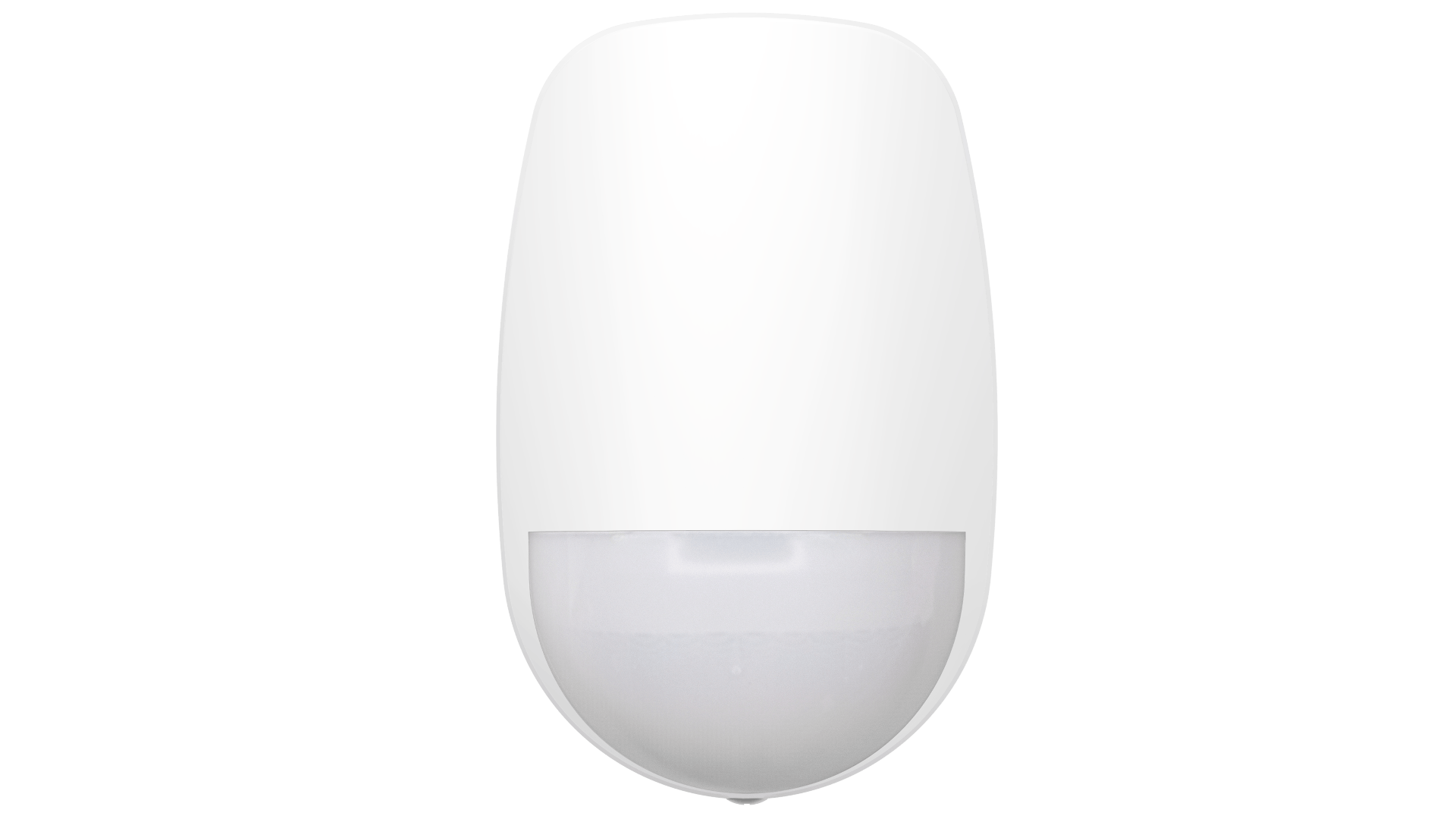

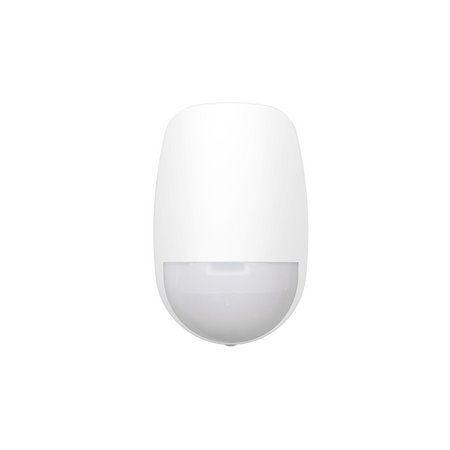

HIKVISION HiLook HA-ALARM-PIR2 PIR Motion Sensor | 12M Detection Range | 30KG Pet Immunity | by HIKVISION
The HIKVISION HiLook HA-ALARM-PIR2 PIR Motion Sensor features a 12-meter detection range and 30kg pet immunity, making it ideal for residential and commercial security systems. With advanced IFT technology to prevent false alarms and digital temperature compensation for stable performance, this dual-tech sensor ensures reliable monitoring in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION HiLook HA-ALARM-PIR2 PIR Motion Sensor | 12M Detection Range | 30KG Pet Immunity | by HIKVISION
Brand: HIKVISION
SKU: HA-ALARM-PIR2
Alternatively Known As: Dual-Tech PIR Motion Sensor, Pet Immune PIR Detector, HiLook PIR Alarm Sensor
Technical Specifications
- Detection Range: 12 meters
- Detection Angle: 85.9 degrees
- Pet Immunity: Up to 30kg
- Microwave Frequency: 24 GHz
- Voltage Range: 9 to 16 V DC
- Temperature Compensation: Digital
- Optics: 52 zones of 3D optics with creep-zone protection
- Wiring: Selectable EOL resistors for alarm and tamper-proof wiring
- Mounting: Wall or ceiling (brackets sold separately)
- False Alarm Prevention: IFT technology
- Dimensions (H x L x W): 60mm x 50mm x 110mm
- Weight: 0.3 kg
Key Features
- Detection range of 12 meters with 85.9° coverage angle
- Up to 30kg pet immunity to reduce false alarms
- Automatic sensitivity adjustment
- Digital temperature compensation for stable performance
- 52 zones of 3D optics including creep-zone protection for full coverage without dead angles
- Selectable EOL resistors for alarm and tamper-proof wiring
- Sealed optics to prevent insect interference
- 24 GHz microwave sensor for dual-technology detection
- Wide voltage adaptation from 9 to 16 V with polarity reverse connection protection
- IFT technology to prevent false alarms
- Wall or ceiling mounting brackets available separately
Professional Installation Requirements
- Installation by a qualified security system technician or licensed electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Residential security systems
- Commercial and retail premises intrusion detection
- Warehouse and storage facility monitoring
- Office and industrial building security
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption contributes to energy savings
- Durable sealed optics reduce maintenance and waste
- Advanced false alarm prevention reduces unnecessary system activations
Warranty Information
3 years warranty from the date of purchase covering manufacturing defects.
Available Now
The HIKVISION HiLook HA-ALARM-PIR2 Dual-Tech PIR Motion Detector is available for immediate purchase, ideal for enhancing security in residential, commercial, and industrial applications.
