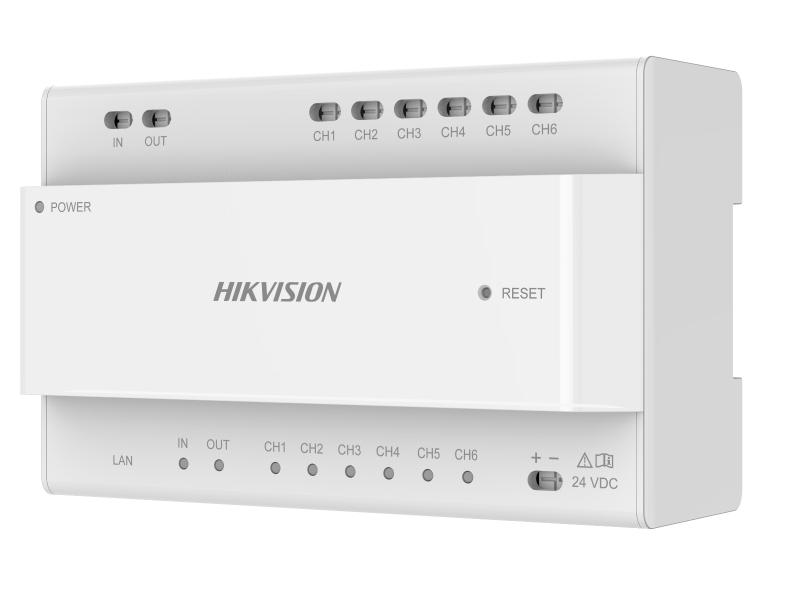

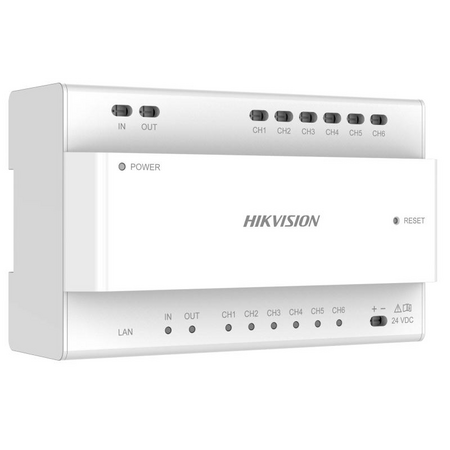

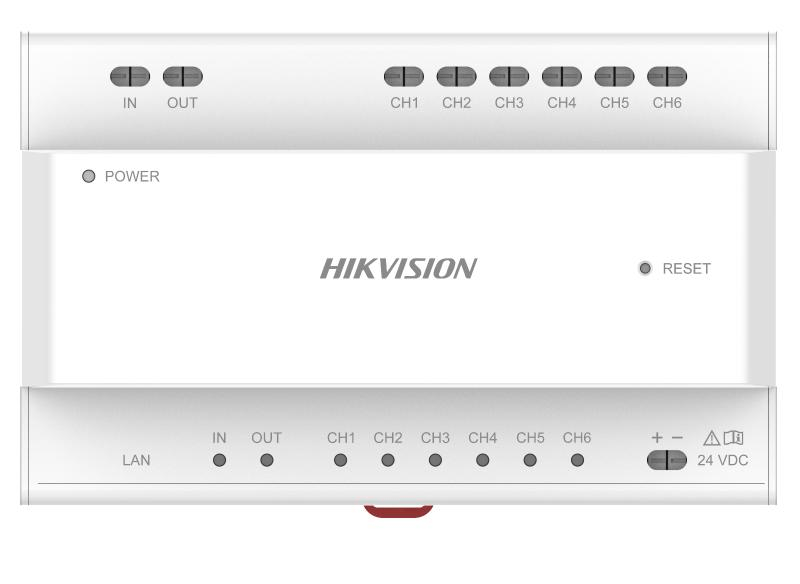

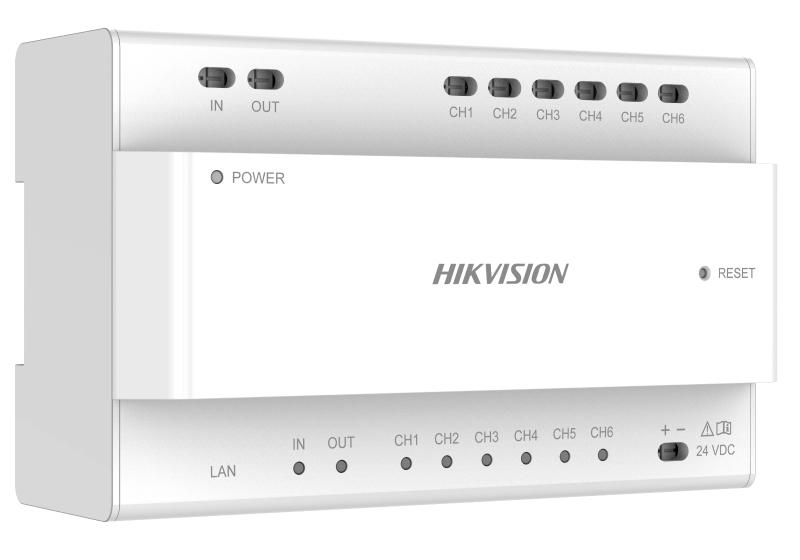

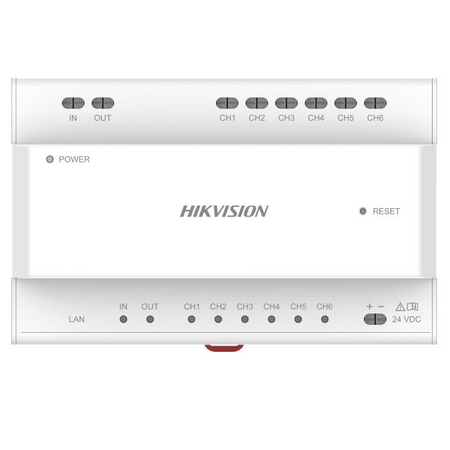

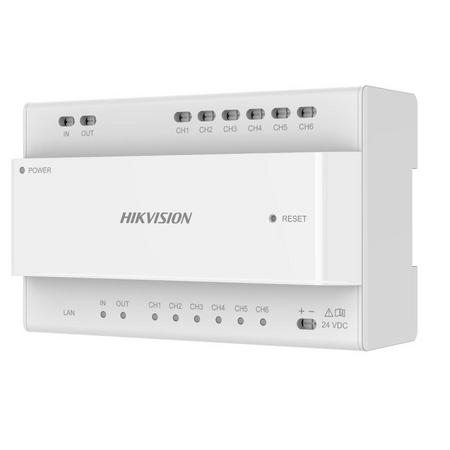

HIKVISION Intercom KAD706Y-SP 2-Wire Distributor | 6-Port Audio/Video | 24VDC Power | by HIKVISION
The HIKVISION Intercom KAD706Y-SP is a 2-wire distributor designed for seamless audio and video distribution across up to 6 devices. Ideal for both residential and commercial intercom systems, it features 8 interface indicators and din rail mounting for easy installation. With a 24VDC power supply, this reliable unit ensures efficient communication without the need for a device power supply.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION Intercom KAD706Y-SP 2-Wire Distributor | 6-Port Audio/Video | 24VDC Power | by HIKVISION
Brand: HIKVISION
SKU: DS-KAD706Y-SP
Alternatively Known As: 2-wire IP distributor, Y-Series intercom distributor, HIKVISION 6-port 2-wire distributor
Technical Specifications
- 6-port 2-wire cascade interfaces without device power supply
- 2 cascade interfaces compatible with DS-KAD704Y, DS-KAD706Y & DS-KAD706Y-S series
- 8 interface indicators for status monitoring
- 1 RJ-45 network interface
- 1 Reset button for system reset
- Din rail mounting for easy installation
- 24VDC input power supply
- Dimensions (H x L x W): 90mm x 60mm x 150mm
- Weight: 1.2 kg
Key Features
- 2-wire IP distributor
- 6-port 2-wire cascade interfaces without device power supply
- 2 cascade interfaces for DS-KAD704Y, DS-KAD706Y & DS-KAD706Y-S series
- 8 interface indicators, 1 RJ-45 Interface, 1 Reset button
- Din rail mounting, 24VDC input power supply
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and safety compliance.
Applications
- Intercom systems for residential buildings
- Commercial office communication systems
- Multi-device audio/video distribution setups
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 24VDC input reduces energy usage
- Supports efficient device cascading minimizing wiring complexity and material use
Warranty Information
2 years warranty from the manufacturer covering defects and malfunctions.
Available Now
The HIKVISION INTERCOM KAD706Y-SP Y-SERIES 2WIRE DISTRIBUTOR is available for immediate purchase, ideal for multi-device intercom audio/video distribution in residential and commercial applications.
