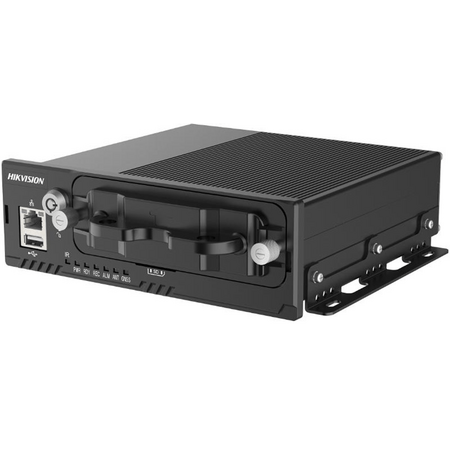

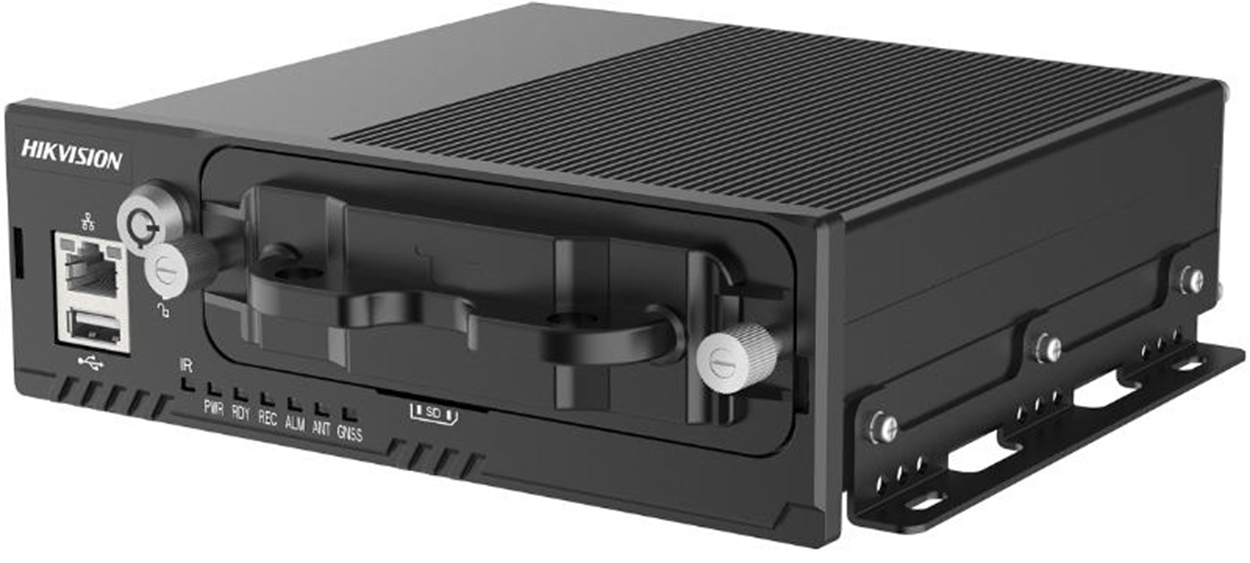

HIKVISION MOBILE MD5043 DVR 4-CH | H.264/H.265 Support | 2X HDD/SSD | Built-in GPS | by HIKVISION

BRAND: HIKVISION
SKU: AE-MD5043
$1,057.00 List price: $1,279.40
+ −
30 Days Return Delivery Options
The HIKVISION MOBILE MD5043 DVR 4-CH is designed for mobile surveillance, supporting 4 HD TVI cameras up to 1080P resolution. With pluggable 2 × 2.5 inch HDD/SSD storage and built-in GPS for precise vehicle positioning, it's perfect for fleet management and public transport security. This DVR ensures reliable operation with a wide power input range and super-capacitor for power outage protection.

Product Name/Title: HIKVISION MOBILE MD5043 DVR 4-CH | H.264/H.265 Support | 2X HDD/SSD | Built-in GPS | by HIKVISION

Brand: HIKVISION

SKU: AE-MD5043

Alternatively Known As: Mobile DVR 4 Channel, Vehicle DVR Recorder, HIKVISION MD5043, Mobile Video Recorder 4CH, Fleet DVR System

Technical Specifications
  • Supports 4 HD TVI cameras up to 1080P resolution
  • Pluggable 2 × 2.5 inch HDD/SSD storage (SSD up to 4TB, HDD up to 2TB)
  • Built-in GPS for vehicle positioning and location data embedding
  • Wide power input range from +9 VDC to +32 VDC
  • Super-capacitor for power outage protection
  • Software firewall and web browser access
  • Supports 4G and Wi-Fi modules for data transmission
  • Shutdown delay configurable from 0 to 6 hours with scheduled startup/shutdown
  • Aluminum die-cast chassis with fanless design
  • Supports AI features including ADAS, DSM, and Driver Identification
  • Dimensions (H x L x W): 45mm x 160mm x 220mm
  • Weight: 1.2 kg
Key Features
  • Access of 4 HD TVI cameras with up to 1080P resolution
  • Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB, HDD up to 2TB
  • User-friendly GUI providing easy and flexible operations
  • Pluggable 4G and Wi-Fi modules for flexible data transmission
  • Built-in GPS module for precise vehicle positioning and location recording
  • Information collection interfaces for driving data such as turn signals, braking, reversing
  • Specialized aviation connectors for signal stability
  • Shutdown delay and 24-hour scheduled startup/shutdown
  • Built-in super-capacitor to prevent damage from sudden power outage
  • Wide-range power input (+9 VDC to +32 VDC)
  • Power-off protection to prevent key data loss
  • Aluminum die-cast chassis with no fan design for durability
  • Software-based firewall supported
  • Web browser access supported
  • Supports Driving Status Monitoring and Advanced Driving Assistance System
  • Recording backup on redundant HDD/SSDs
  • Supports running up to 3 AI features simultaneously (default ADAS+DSM+DI)
Professional Installation Requirements
  • Professional installation by qualified technicians is recommended to ensure proper integration with vehicle systems and secure mounting.
Applications
  • Mobile surveillance for vehicles
  • Fleet management and vehicle tracking
  • Public transport security
  • Logistics and delivery vehicle monitoring
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Energy-efficient design reduces power consumption in mobile environments
  • Supports digital recording reducing the need for physical media waste
Warranty Information

3 years warranty covering manufacturing defects and hardware failures.

Available Now

The HIKVISION MOBILE MD5043 DVR 4-CH is available for immediate purchase, ideal for vehicle surveillance and fleet management applications.
