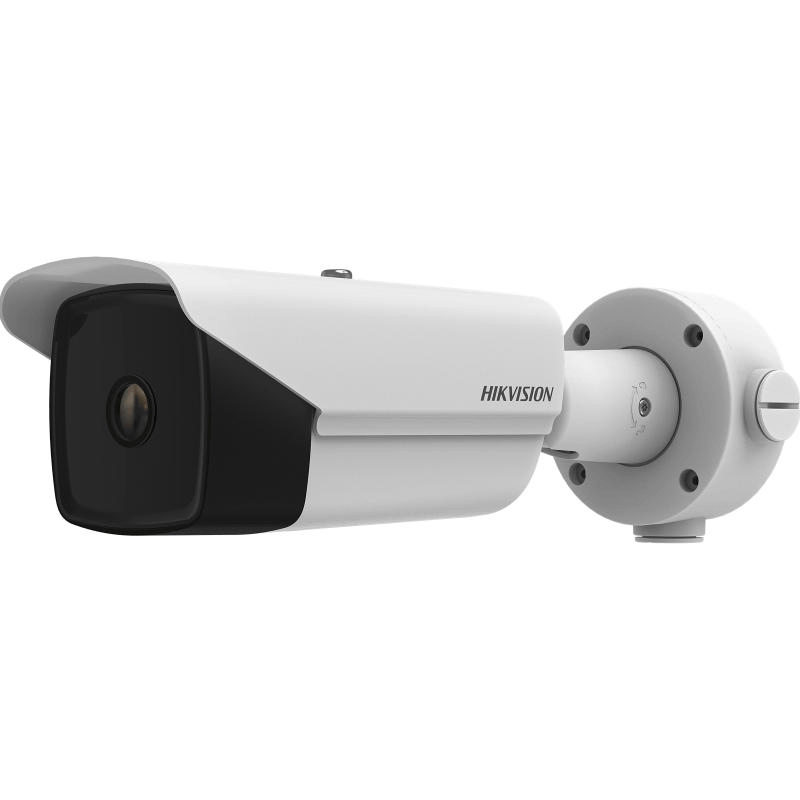

HIKVISION Thermographic Bullet Camera | 384x288 Resolution | NETD < 35 mK | Smoking Detection Algorithm | by HIKVISION
The HIKVISION Thermographic Bullet Camera features a 384x288 resolution and a NETD of less than 35 mK, making it ideal for precise temperature monitoring in industrial and safety applications. With an integrated smoking detection algorithm and advanced video content analysis for vehicle and human classification, this camera ensures reliable surveillance and early fire detection, enhancing safety in restricted areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION Thermographic Bullet Camera | 384x288 Resolution | NETD < 35 mK | Smoking Detection Algorithm | by HIKVISION
Brand: HIKVISION
SKU: DS-2TD2137T-4-QY
Alternatively Known As: Thermal Bullet Camera, Infrared Thermal Camera, Temperature Detection Camera
Technical Specifications
- Resolution: 384 × 288
- Pixel Size: 17 μm
- Sensor Type: VOx UFPA
- NETD: < 35 mK (25°C, F1.0)
- Temperature Range: -20°C to 550°C (-4°F to 1,022°F)
- Temperature Accuracy: Max ± 2°C or ± 2%
- Video Content Analysis: Vehicle and human classification
- Image Processing: Linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Special Features: Smoking detection algorithm
- Dimensions (H x L x W): 70mm x 180mm x 90mm
- Weight: 1.5 kg
Key Features
- 384 × 288 resolution with 17 μm VOx UFPA sensor
- NETD < 35 mK at 25°C, F1.0 for high thermal sensitivity
- Temperature exception alarm range from -20°C to 550°C with accuracy ±2°C or ±2%
- Video content analysis including vehicle and human classification
- Smoking detection algorithm integrated
- Advanced image processing technologies: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Professional Installation Requirements
- Installation by a qualified security or electrical professional is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial temperature monitoring
- Fire prevention and safety systems
- Vehicle and human classification in security
- Smoking detection in restricted areas
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables early fire detection reducing environmental damage
- Supports energy-efficient monitoring by reducing need for manual inspections
Warranty Information
3 years warranty provided by the manufacturer.
Available Now
The HIKVISION Thermographic 2TD2137T Bullet Camera is available for immediate purchase, ideal for industrial, commercial, and safety monitoring applications.
