House Amplifier 47-2400MHz | 25dB Forward Gain | Compact Design by Matchmaster
House amplifier with 47-2400MHz frequency range and 25dB forward gain—ideal for residential and commercial audio/video systems. Built for signal enhancement, with a compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

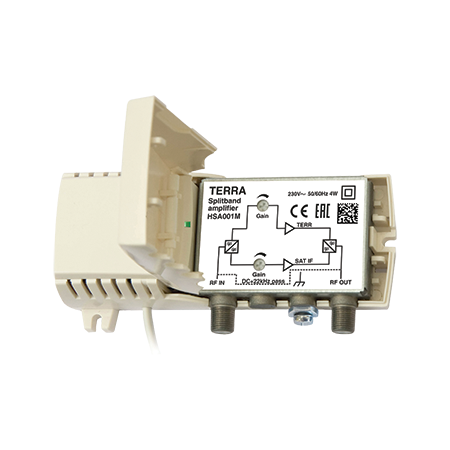

Product Name/Title: TERRA House Amplifier 47-2400MHz with 25dB Forward Gain
Brand: Matchmaster
SKU: 14MM-HSA001
Alternatively Known As: House Amplifier, Satellite Amplifier, Distribution Amplifier, SMS Amplifier, TDT Amplifier, FTA Amplifier
Technical Specifications
- Forward path frequency range: SAT IF 950-2400 MHz, Terr. TV 47-862 MHz
- Gain: SAT IF 18-25 dB (pre-correction), Terr. TV 14-18 dB (pre-correction)
- Gain adjustment: SAT IF 10 dB, Terr. TV 15 dB
- Input and output return loss: SAT IF ≥ 10 dB, Terr. TV ≥ 10 dB
- Maximal output level IMD3=35 dB (EN50083-3): SAT IF 115 dBµV (2 equal carriers)
- Maximal output level IMD3=60 dB (DIN45004B): Terr. TV 110 dBµV
- DC pass: 400 mA max
- Mains power consumption: 230V ~ 50/60Hz 4W
- Operating temperature range: -20° to +50°C
- Dimensions (H x L x W): 39mm x 73mm x 133mm
- Weight: 0.36 kg
Key Features
- Foxtel approved (F31101) for SMS stacker and TDT systems
- Wideband (47-2400MHz) adjustable amplification with 25dB maximum gain for satellite band
- 18dB maximum gain for terrestrial band with built-in separate gain regulators for every band
- 7dB fixed slope for satellite band and 4dB fixed slope for terrestrial band
- >10dB return loss for satellite and terrestrial bands
- Compact design suitable for apartments and domestic systems
- DC and DiSEqC signals pass (400mA maximum)
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Small MDU systems
- Apartment distribution systems
- SMS (Satellite Multistacker) systems
- TDT and FTA systems
- Small commercial systems
- Domestic systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption at 4W reduces energy usage
- Compact design minimizes material use and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster TERRA House Amplifier HSA001 is available now for immediate purchase. Ideal for small MDU, apartment, and domestic satellite and terrestrial distribution systems.
