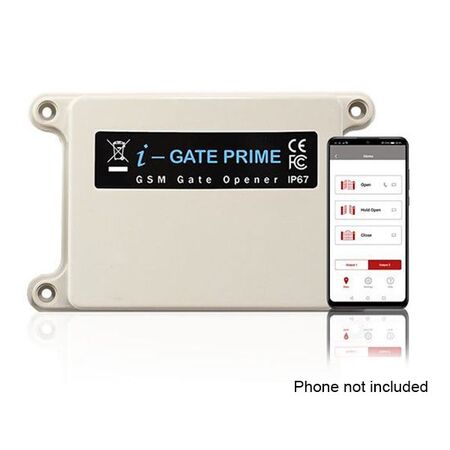

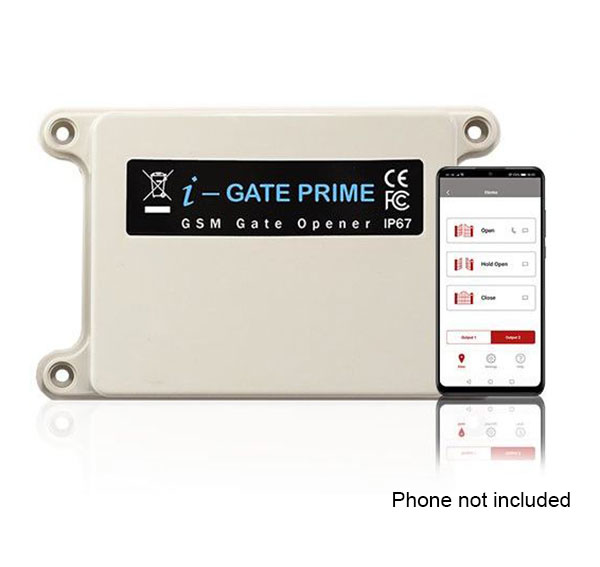

iGATE Prime 4G Gate Opener iCentral
iCentral iGATE Prime 4GSA is a 4G gate opener. Ideal for remote gate opening over 4G.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: i-GATE PRIME 4GSA, AES iGate Prime 4G, 4G GSM Gate Opener, Cellular Gate Controller
Technical Specifications
- Network: 4G cellular connectivity with Australia/NZ 4GSA configuration
- Power Supply: 12–24 V DC; 2.5 A supply required
- SIM Requirement: 4G Nano SIM with voice, SMS and data allowances; SIM not included
- Standby Current: Approximately 45–80 mA, depending on configuration
- Peak Current: Up to 1.2 A
- Relay Outputs: 2 dry-contact momentary relay outputs
- Relay Configuration: Normally closed, common and normally open contacts; latching and momentary operation
- Maximum Relay Load: 24 V AC, 2 A maximum
- Ingress Protection: IP67 weatherproof housing
- User Capacity: Stores up to 100 authorised caller ID numbers
- Control Methods: Phone call, SMS text and iOS/Android app
- Status Monitoring: Gate position input for open/closed status indication
- Power Supply: Not included
- Dimensions (H x L x W): 100mm x 155mm x 55mm
- Weight: 0.45 kg
Key Features
- Remote gate and door operation via 4G mobile network
- Authorised caller ID access for up to 100 stored numbers
- Control by phone call, SMS commands or compatible mobile app
- Two independent dry-contact relay outputs
- Supports momentary, latching and unlatching functions
- Gate position input allows open or closed status checking
- Can notify up to four phone numbers when an alarm or gate trigger occurs
- Automatic scheduled call feature helps prevent SIM deactivation
- Fully sealed IP67 enclosure with supplied cable gland
- Suitable for compatible gates, doors, barriers, locks, pumps and other relay-controlled equipment
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrician or access-control installer. The unit requires a separate 12–24 V DC power supply and connection to the gate controller or other low-voltage equipment. Do not connect mains-powered devices directly to the relay outputs; follow AS/NZS 3000 installation requirements where applicable and complete a 4G signal survey before commissioning.
Applications
- Residential driveway gate access control
- Small commercial gate and door access
- Remote operation of electric gates and barriers
- Magnetic lock and electric strike control through suitable low-voltage circuits
- Remote switching of pumps, lights and farm equipment using compatible relay interfaces
Standards & Compliance
- AS/NZS 3000:2018 – applicable to the associated electrical installation and wiring
- AS/NZS 3820:2009 – essential safety requirements framework for applicable low-voltage electrical equipment; verify the responsible supplier’s product compliance documentation
Environmental Benefits
- Low-voltage operation can reduce standby energy use compared with continuously powered higher-voltage control equipment
- IP67 weatherproof housing supports longer service life and reduces premature replacement waste
- Remote access can reduce unnecessary travel for gate access or site checks
- Durable electronic control equipment can support reuse of existing gate infrastructure rather than full system replacement
Warranty Information
iCentral warranty terms state that equipment supplied by iCentral but not manufactured by Ness is covered for 12 months unless otherwise stated. Australian Consumer Law consumer guarantees apply in addition to any express warranty.
Available Now
Available by order through iCentral/Ness and authorised Australian distributors.
