In-Line Duct Fan 250mm | 4 Pole 1Ph | Compact Design | IP55 by Fantech
In-line duct fan with 250mm diameter and 4 pole 1Ph motor—ideal for residential and commercial ventilation. Built for efficient air movement, with compact design and IP55 rating for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

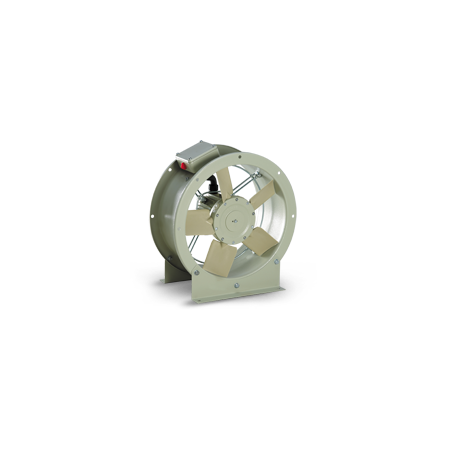

Product Name/Title: Short cased in-line duct fan 250mm 4 pole 1Ph
Brand: Fantech
SKU: SCE254
Alternatively Known As: Inline Duct Fan, Axial Duct Fan, Ventilation Fan
Performance Curve
Technical Specifications
- Electricity supply: 230V single-phase or 415V three-phase, 50Hz
- Motor type: Squirrel cage induction motor
- IP Rating: IP55
- Bearings: Sealed-for-life, ball
- Impeller blades: GRP (Aluminium blades optional)
- Speed control: Electronic or auto-transformer controllers
- Thermal protection: Integral thermal protection supplied as standard
- Air flow tests: ISO 5801: 2004
- Noise tests: BS848, Part 2, 1985
- Dimensions (H x L x W): 250mm x 500mm x 250mm
- Weight: 5 kg
Key Features
- Compact, short case design for easy installation.
- Light-weight but robust construction with galvanised steel casing.
- Capable of operating in ambient temperatures from -20°C to +70°C.
- Speed-controllable using electronic or auto-transformer controllers.
- Integral thermal protection supplied as standard.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Residential: Ventilation in homes and apartments
- Commercial: Offices, retail spaces, and industrial applications
- General: Suitable for any ducted system requiring efficient air movement
Standards & Compliance
- Complies with relevant Australian standards for safety and performance.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech Short Cased In-Line Duct Fan 250mm is available now for immediate purchase. Ideal for residential and commercial ventilation systems.
