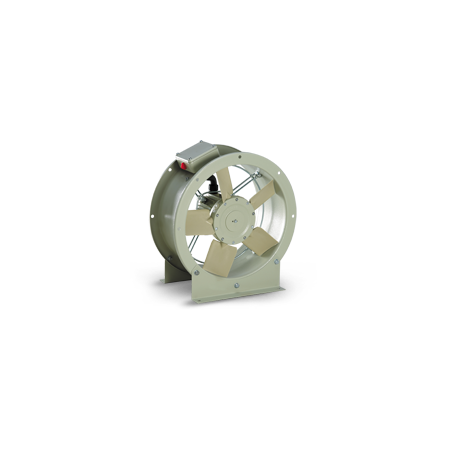

In-Line Duct Fan 250mm | 4 Pole 3Ph | Compact Design | Galvanised Steel by Fantech
In-line duct fan with 250mm diameter and 4 pole 3-phase motor—ideal for ducted ventilation systems. Built for residential and commercial use, with compact design and galvanised steel casing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Short cased in-line duct fan 250mm 4 pole 3Ph
Brand: Fantech
SKU: SCD254
Alternatively Known As: Inline Duct Fan, Axial Duct Fan, Ventilation Fan
Performance Curve
Technical Specifications
- Electricity supply: 230V single-phase or 415V three-phase, 50Hz
- Motor type: Squirrel cage induction motor
- IP Rating: IP55
- Bearings: Sealed-for-life, ball
- Impeller blades: GRP (Aluminium blades optional)
- Speed control: Electronic or auto-transformer controllers
- Thermal protection: Integral thermal protection standard
- Dimensions (H x L x W): 250mm x 500mm x 250mm
- Weight: 10 kg
Key Features
- Compact, short case design for easy installation.
- Light-weight but robust construction with galvanised steel casing.
- Capable of operating in ambient temperatures from -20°C to +70°C.
- Speed-controllable using electronic or auto-transformer controllers.
- Integral thermal protection supplied as standard.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Ducted ventilation systems in residential and commercial buildings
- Industrial applications requiring efficient air movement
Standards & Compliance
- Complies with ISO 5801: 2004 for air flow testing.
- Complies with BS848, Part 2, 1985 for noise testing.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech Short Cased In-Line Duct Fan 250mm 4 Pole 3Ph is available now for immediate purchase. Ideal for ducted ventilation systems in various applications.
