In-Line Duct Fan 400mm 4 Pole | Compact & Robust | IP55 Rated by Fantech
In-line duct fan with 400mm diameter and 4 pole motor—ideal for ducted ventilation systems. Built for residential and commercial use, with compact design and IP55 rating for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

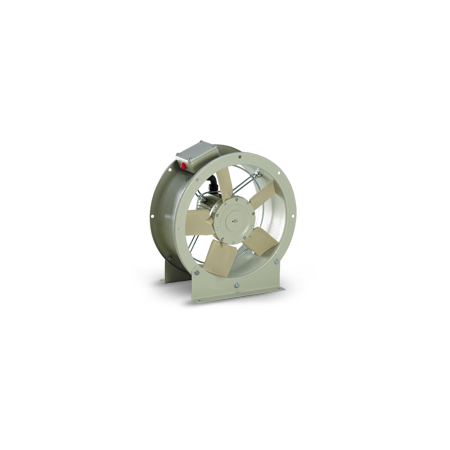

Product Name/Title: Short cased in-line duct fan 400mm 4 pole 3Ph
Brand: Fantech
SKU: SCD404
Alternatively Known As: 400mm Duct Fan, In-Line Duct Fan, Axial Duct Fan
Performance Curve
Technical Specifications
- Electricity supply: 230V single-phase or 415V three-phase, 50Hz
- Motor type: Squirrel cage induction motor
- IP Rating: IP55
- Bearings: Sealed-for-life, ball
- Impeller blades: GRP (Aluminium blades optional)
- Speed control: Electronic or auto-transformer controllers
- Dimensions (H x L x W): 400mm x 600mm x 400mm
- Weight: 15 kg
Key Features
- Compact, short case design for easy installation.
- Light-weight but robust construction with galvanised steel casing.
- Capable of operating in ambient temperatures from -20°C to +70°C.
- Speed-controllable using electronic or auto-transformer controllers.
- Integral thermal protection supplied as standard.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Ducted ventilation systems in residential and commercial buildings
- Industrial applications requiring efficient air movement
Standards & Compliance
- Complies with ISO 5801: 2004 for air flow testing.
- Complies with BS848, Part 2, for noise testing.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech Short Cased In-Line Duct Fan 400mm 4 Pole 3Ph is available now for immediate purchase. Ideal for ducted ventilation systems in both residential and commercial applications.
