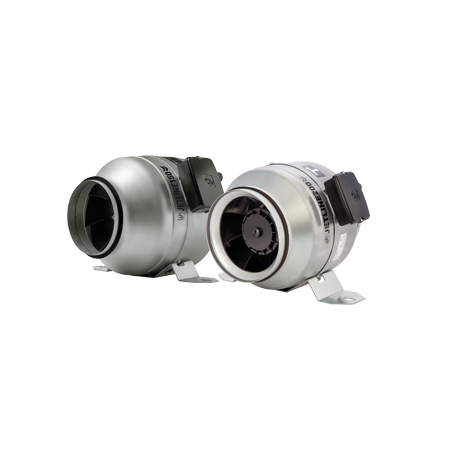

In-Line EC Fan 315mm | High Performance | Low Profile | EC Motor by Fantech

BRAND: Fantech

SKU: JETLINE-315ECO

$1,386.70 List price: $1,807.50

+ −

30 Days Return Delivery Options

In-line EC fan with high performance and low profile design—ideal for residential and commercial ventilation. Built for efficient air movement, with EC motor technology and silent-block motor mounting for reduced noise.

Description

Product Name/Title: Fan In-Line EC Jetline series 315mm

Brand: Fantech

SKU: JETLINE-315ECO

Alternatively Known As: EC In-Line Fan, Jetline Fan, 315mm Duct Fan

Performance Curve

DrawCurve.ashx?curve1=GDAMEEBGHAHDFGINRDBEJMIBEHDEFCENBIJIHMIEDFIDHHNRFEDFIMFGGCFDAJNEFBECMBIABGFJINANANANANANANANAOAMAFNAMEE&curve1label=315&activecurve=1&dx=&dy=&width=390

Technical Specifications

Electricity supply: 230V +/-10%, single-phase, 50/60Hz
IP Rating: IP44
Class B Insulation
Speed-controllable via internal potentiometer or EC type speed controller
Sealed for life ball bearings
Centrifugal impeller design
Dimensions (H x L x W): 315mm x 600mm x 315mm
Weight: 5 kg

Key Features

High performance, low profile design with EC motor technology.
Speed-controllable from 10% to 100% via a 0-10V analogue input signal.
Silent-block motor mounting to reduce vibrations and noise.
Quick fit mounting bracket for fast installations.
Robust construction with galvanised steel outer casing.

Professional Installation Requirements

Professional installation is recommended for optimal performance and safety.

Applications

Residential: Homes, apartments, ventilation systems
Commercial: Offices, retail spaces, industrial applications
General: Any location requiring efficient air movement and ventilation

Standards & Compliance

Complies with AS/NZS60335-2-80:2016 for in-duct fans.

Environmental Benefits

Energy-efficient design reduces power consumption and environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Fantech Jetline EcoWatt 315mm In-Line Fan is available now for immediate purchase. Ideal for residential and commercial ventilation applications.

Exhaust Fan Airflow Calculator

Room Length (m):
Room Width (m):
Ceiling Height (m):
Fan Airflow Capacity:
Desired Air Changes per Hour (ACH):

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
