Making Trade Life Easy!

Home/Electrical/Air Movement/Exhaust Fans/Inline Exhaust Fans/In-Line Fan 125mm | High Performance | Mixed-Flow Impeller | IP44 by Fantech

Trade Discount 23%

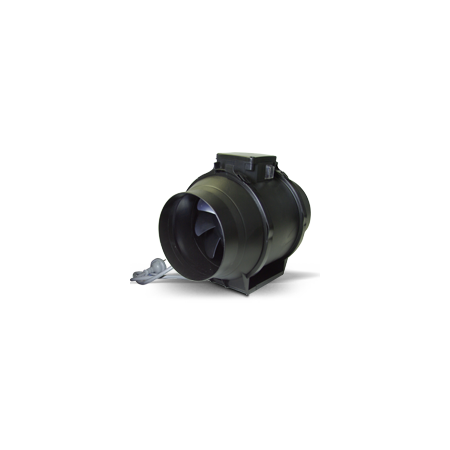

In-Line Fan 125mm | High Performance | Mixed-Flow Impeller | IP44 by Fantech

BRAND: Fantech

SKU: RIL-125

$213.40 List price: $278.20

+ −

30 Days Return Delivery Options

In-line fan with high performance mixed-flow impeller and IP44 rating—ideal for ducted supply and exhaust air applications. Built for energy efficiency, with integrated mounting foot and easy installation.

Description

Product Name/Title: In-Line Provent series 125mm

Brand: Fantech

SKU: RIL-125

Alternatively Known As: 125mm In-Line Fan, Mixed-Flow Fan, Ducted Fan

Performance Curve

DrawCurve.ashx?curve1=BEBMHEFFBIGGJGFNREGCMGCAGFBHEFINRDFAAGAMBCDIJAIJNCIFBACBDMAIJAJENRBBDGCDBHCCMHBJJNCGAAADFJBAGMIHCNRDEEIEHDBGIFGMINCEEJBJCABHJGBMCNRHBIBDCIIJBCAJMDNANANANAOAMAAENAMAJ&curve1label=125 Hi speed&curve2=BACMGGACBIAEDABNRDAEDMBCBIABCHNBDCCAHMDFDFEHNRDIFAAHFMCHJGCJNFBJCFBJJMCACDNRCHGBHEFGAMDAHBNANANANANANANAOAMAAENAMAH&curve2label=125 Lo speed&activecurve=2&dx=&dy=&width=390

Technical Specifications

Electricity supply: 230V, single-phase, 50Hz
IP Rating: IP44
Motor type: 2-speed, squirrel cage, capacitor run
Construction: Reinforced, injection moulded polypropylene plastic
Bearings: Sleeve for RIL-100 and RIL-125, ball for all other models
Speed controllable using VA type speed controller in high speed setting only
Dimensions (H x L x W): 125mm x 300mm x 125mm
Weight: 2.5 kg

Key Features

High performance mixed-flow impeller
Integrated mounting foot for easier installation
Plug and lead included for easy installation
Can be mounted in any position
Models with external 2-speed switch and adjustable run-on timer

Professional Installation Requirements

Professional installation is recommended for optimal performance and safety.

Applications

Ducted supply air applications
Exhaust air applications

Standards & Compliance

Complies with AS/NZS60335-2-80:2004 for in-duct fans.

Environmental Benefits

Energy-efficient design reduces power consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Fantech ProVent Series 125mm In-Line Fan is available now for immediate purchase. Ideal for ducted supply and exhaust air applications.

Exhaust Fan Airflow Calculator

Room Length (m):
Room Width (m):
Ceiling Height (m):
Fan Airflow Capacity:
Desired Air Changes per Hour (ACH):

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
