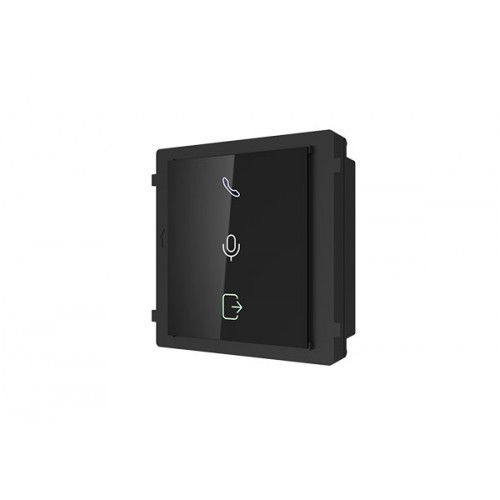

Indicator Module to Suit Intercom Hikvision
Hikvision intercom indicator module for modular door stations. Ideal for video intercom installs at building entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Video Intercom Indicator Module, Hikvision Calling and Door Unlock Indicator Module
Technical Specifications
- Model: DS-KD-IN
- Processor: Embedded MCU processor
- Indicators: Calling, two-way audio and door unlock status
- Module Connection: 2 interfaces, comprising 1 input and 1 output
- Power Supply: 12 VDC, powered by another intercom module
- Power Output: 12 VDC for connected module
- Power Consumption: ≤2 W
- DIP Switch: 8-position configuration switch
- Working Temperature: -40°C to +60°C
- Working Humidity: 10% to 95%
- Ingress Protection: IP65
- Installation: Flush mounting or surface mounting
- Dimensions (H x L x W): 98.5mm x 33.7mm x 100mm
- Weight: 0.165 kg
Key Features
- Displays calling, two-way audio and door unlock status
- Designed for Hikvision modular IP video intercom door stations
- Connects to other modular door station units through dedicated module interfaces
- Supports flush-mount and surface-mount installation
- Low power consumption of no more than 2 W
- IP65-rated enclosure for protected outdoor door station applications
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or low-voltage technician. Configure the module address and isolate power before connecting it to the Hikvision modular door station. Mains electrical work is not required for the 12 VDC module itself.
Applications
- Building entry video intercom systems
- Apartment and multi-residential door stations
- Commercial access control entrances
- Office and industrial building entry points
- Hikvision modular IP video intercom installations
Standards & Compliance
- Applicable to electronic access-control and intercom system installations designed in accordance with AS/NZS IEC 60839.11.1, where relevant; product-specific Australian compliance markings were not identified in the available documentation.
Environmental Benefits
- Low power consumption of ≤2 W helps reduce operating energy use
- IP65 protection and a wide operating-temperature range support extended service life in suitable installations
- Replaceable modular design can reduce waste by allowing the indicator module to be serviced independently of the complete door station
Warranty Information
Hikvision Australia warranty applies subject to the applicable product warranty terms, authorised distribution channel and proof of purchase. The DS-KD-IN was not identified in Hikvision Australia's published five-year premium warranty product list; confirm the specific warranty period with the authorised Australian distributor.
Available Now
Available through Hikvision and authorised Australian security-system distributors, subject to regional product availability.
