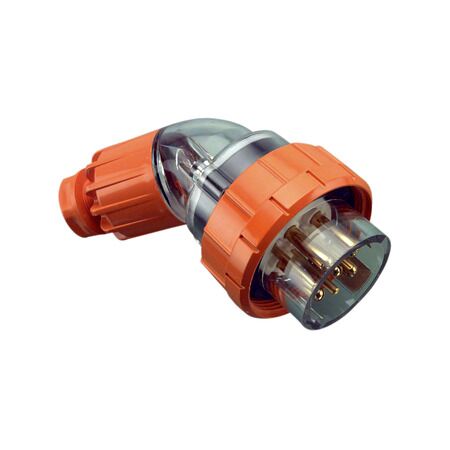

Industrial Angled Plug 500V 10A | IP66 Rated | 7 Round Pins | Electric Orange by Clipsal
Industrial angled plug with 500V 10A rating and IP66 protection—ideal for machinery and equipment. Built for secure connections, with screw terminals and robust polycarbonate housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Angled Plug, IP66, 500V 10A - 7 Round Pins Electric Orange
Brand: Clipsal
SKU: 56PA710-RO
Alternatively Known As: Industrial Angled Plug, 56 Series Plug, IP66 Plug
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 500V AC 50Hz
- Material: Polycarbonate housing, brass pins
- IP Rating: IP66
- Temperature range: -25 to 75 °C
- Connections: Screw terminal 1-6 mm²
- Dimensions (H x L x W): 78mm x 158mm x 126.5mm
- Weight: 0.36 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- Rated operational voltage of 500V AC and current of 10A.
- Screw terminal connections for secure wiring.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications requiring robust connections
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal 56 Series Angled Plug is available now for immediate purchase. Ideal for industrial and small commercial applications.
