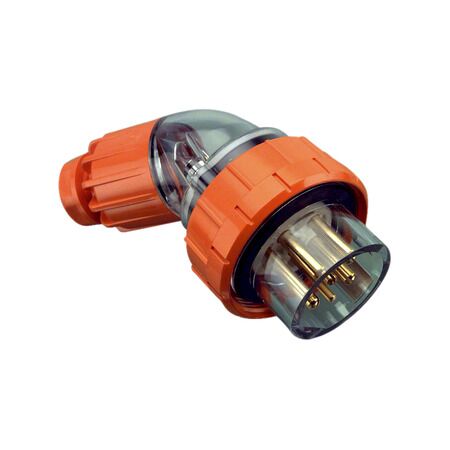

Industrial Angled Plug 500V 20A | IP66 Rated | 7 Round Pins | Electric Orange by Clipsal

BRAND: Clipsal
SKU: 56PA720-EO
$224.00 List price: $336.10
+
Industrial angled plug with 500V 20A rating and IP66 protection—ideal for utility and small commercial applications. Built for durability, with polycarbonate housing and brass pins for reliable performance.

Product Name/Title: Clipsal - 56 Series, Angled Plug, IP66, 500V 20A - 7 Round Pins Electric Orange

Brand: Clipsal

SKU: 56PA720-EO

Alternatively Known As: Industrial Angled Plug, 56 Series Plug, IP66 Plug

Technical Specifications
  • Rated current: 20A
  • Rated operational voltage: 500V AC 50Hz
  • Material: Polycarbonate housing, brass pins
  • Connections: Screw terminal 1-6 mm²
  • Cable entry: Cable gland
  • Poles description: 3P + N + E
  • Thread type: M25
  • Pin arrangement: X
  • Ambient air temperature for operation: -25...75 °C
  • Dimensions (H x L x W): 78mm x 158mm x 126.5mm
  • Weight: 0.373 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Rated operational voltage of 500V AC.
  • Rated current of 20A.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Utility industry
  • Small commercial
Standards & Compliance
  • Complies with AS/NZS 3123 and EN 60309-2.
Environmental Benefits
  • Compliant with RoHS directives and environmental standards.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Angled Plug is available now for immediate purchase. Ideal for industrial and commercial applications.

56PA720-EO (56PA720-EO, 219 Kb) [Download]
