Industrial Angled Plug 500V 50A | IP66 Rated | 5 Round Pins | Electric Orange by Clipsal
Industrial angled plug with 500V 50A rating and IP66 protection—ideal for small commercial and utility applications. Built for durability, with polycarbonate housing and brass pins for reliable power supply.
Sign in
Please login to continue to your account.

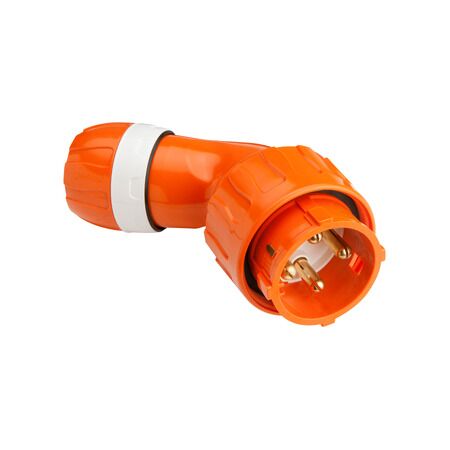

Product Name/Title: Clipsal - 56 Series, Angled Plug, IP66, 500V 50A - 5 Round Pins Electric Orange
Brand: Clipsal
SKU: 56PA550-RO
Alternatively Known As: Industrial Angled Plug, 56 Series Plug, IP66 Plug
- Rated current: 50A
- Rated operational voltage: 500V AC 50Hz
- Material: Polycarbonate housing with brass pins
- IP Rating: IP66
- Poles description: 3P + N + E
- Cable entry: Cable gland
- Thread type: M40
- Dimensions (H x L x W): 78mm x 168mm x 130mm
- Weight: 0.42 kg
- IP66 rated for protection against dust and water.
- Rated operational voltage of 500V AC and current of 50A.
- Screw terminal connections for 2.5-25 mm² cables.
- Professional installation is recommended for optimal safety and compliance.
- Industrial: Power supply for small commercial and utility applications.
- Complies with AS/NZS 3123 and EN 60309-2 standards.
- Compliant with RoHS directives and environmental standards.
Standard warranty applies.
The Clipsal 56 Series Angled Plug is available now for immediate purchase. Ideal for industrial power supply applications.
