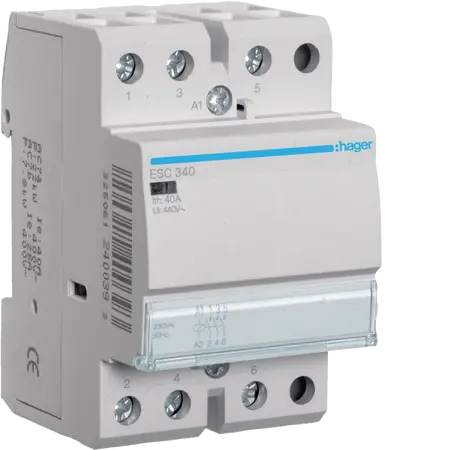

Industrial Contactor 40A 3NO 230V 50Hz Ui 440V Grey Hager
Hager Industrial Contactor 40A 3NO 230V 50Hz Ui 440V Grey. Ideal for motor control and industrial switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type of contacts: 3NO
- Number of contacts: 3
- Cross-section flexible conductor: 1.5 - 16 mm²
- Cross-section rigid conductor: 1.5 - 25 mm²
- Rated current: 40 A
- Number of modules: 3
- Frequency: 50 - 50 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 11.10 W
- Inrush power absorbed: 62.50 VA
- Dimensions (H x L x W): 85mm x 60mm x 54mm
- Weight: 0.3 kg
Key Features
- 40A rated current for high power applications
- Three normally open contacts for circuit control
- Wide operating temperature range
- Compact design with modular structure
- High electric endurance and mechanical operations
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance.
Applications
- Industrial automation systems
- Commercial buildings for lighting and motor control
- Residential main and secondary circuit control
Standards & Compliance
- Complies with relevant AS/NZS standards for electrical safety
Environmental Benefits
- Optimized power efficiency reduces energy wastage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Contactor 40A, 3NO, 230V is available for immediate purchase, ideal for controlling power circuits in both commercial and residential settings.
