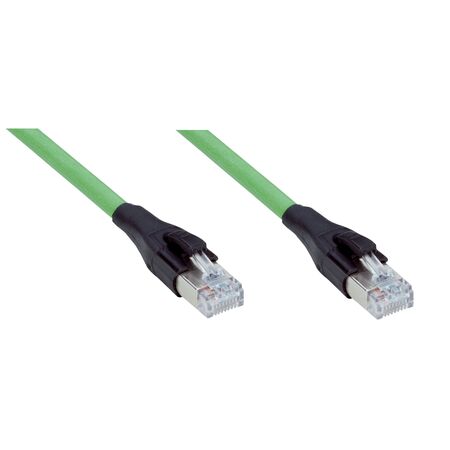

Industrial Ethernet Cable M12 to RJ45 Cat6A 10m SICK
Built for industrial Ethernet networks requiring high-speed data transmission, this SICK cable has male RJ45, 8-pin, straight connectors on both ends. The 10m shielded CAT6A cable has a green PUR jacket, supports data rates up to 10 Gbit/s, and is flame retardant to UL 1581 and IEC 60332-1-2. It's built to AS/NZS 3000 wiring rules, operating from -40°C to +85°C. Full technical specifications and installation notes are listed below.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 8-pin, straight
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector material: TPU
- Connector color: Black
- Cable length: 10 m
- Cable type: 8-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Jacket color: Green
- Cable diameter: 6.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 8 x cable diameter
- Nominal voltage, cable: 125 V AC
- Test voltage, cable: 1,000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Application: Zones with oils and lubricants
- Enclosure rating: IP20
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Specific insulation resistance: < 30 mΩ
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 6mm x 10000mm x 6400mm
- Weight: 0.2 kg
Key Features
- Shielded CAT6A cable supporting data rates up to 10 Gbit/s
- Male RJ45 8-pin straight connectors on both ends
- Cable jacket made of halogen-free PUR material
- High bending radius for flexible use (>10x cable diameter)
- Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
- Contamination rating 3 for industrial environments
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet networks requiring high-speed data transmission
- Environments with exposure to oils and lubricants
- Data communication in automation and control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YMRJA8-100EG1MRJA8 Ethernet cable is available for immediate purchase, ideal for industrial and automation network applications requiring reliable and high-speed data transmission.
FAQ
Q: What connectors does this cable use?
A: It has male RJ45, 8-pin, straight connectors on both ends, with a halogen-free PUR jacket.
Q: What data rate does this cable support?
A: It supports transmission rates up to 10 Gbit/s over shielded CAT6A conductors, and it's backed by SCHNAP's 30-day returns policy for added purchasing confidence.
