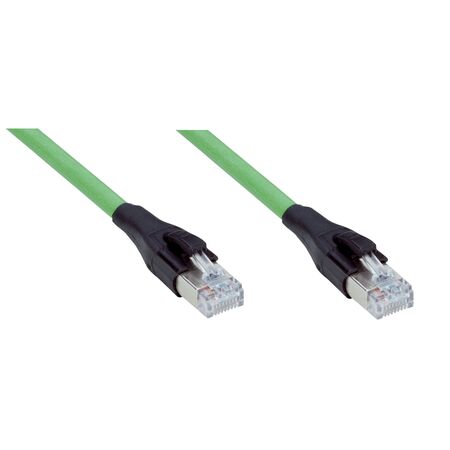

Industrial Ethernet Cable M12 to RJ45 Cat6A 1.5m SICK

BRAND: SICK
SKU: 2141324
$98.20 List price: $123.40
+ −
30 Days Return Electricians Unlock Trade Access
Built for industrial Ethernet networks requiring high-speed data transmission, this SICK cable has male RJ45, 8-pin, straight connectors on both ends. The 1.5m shielded CAT6A cable supports data rates up to 10 Gbit/s, with a halogen-free PUR jacket rated flame retardant to UL 1581 and IEC 60332-1-2. It's built to AS/NZS 60950 safety standards for IT and communication equipment. Full technical specifications and installation notes are listed below.
Technical Specifications
  • Connection type head A: Male connector, RJ45, 8-pin, straight
  • Connection type head B: Male connector, RJ45, 8-pin, straight
  • Connector material: TPU
  • Cable length: 1.5 m
  • Cable type: 8-wire, PUR, halogen-free
  • Cable diameter: 6.4 mm
  • Conductor cross section: 0.14 mm²
  • Shielding: Shielded
  • Nominal voltage: 125 V AC
  • Test voltage: 1,000 V AC
  • Reference voltage: 48 V AC / 60 V DC
  • Signal type: Ethernet, Gigabit Ethernet
  • Transmission characteristics: CAT6A
  • Data transmission rate: ≤ 10 Gbit/s
  • Enclosure rating: IP20
  • Operating temperature: Stationary -40°C to +80°C, Head -25°C to +85°C
  • Contamination rating: 3
  • Insulation resistance: > 100 mΩ
  • Thermal resistance: Flame retardant acc. to UL 1581 and IEC 60332-1-2
  • Dimensions (H x L x W): 6mm x 1500mm x 6mm
  • Weight: 0.1 kg
Key Features
  • Male RJ45 8-pin straight connectors on both ends
  • Shielded CAT6A cable supporting up to 10 Gbit/s data transmission
  • Halogen-free PUR jacket and cable material
  • Flame retardant according to UL 1581 and IEC 60332-1-2
  • Operating temperature range: -40°C to +80°C (stationary), -25°C to +85°C (head)
  • Contamination rating 3 suitable for industrial environments
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial Ethernet networks requiring high-speed data transmission
  • Zones with oils and lubricants
  • Automation and control systems
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Halogen-free cable materials reduce toxic emissions in case of fire
  • Flame retardant properties enhance safety and reduce fire hazards
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.

Available Now

The SICK YMRJA8-015EG1 Ethernet cable is available for immediate purchase, ideal for industrial Ethernet network installations requiring robust and high-speed data transmission.


FAQ

Q: What connectors does this cable use?

A: It has male RJ45, 8-pin, straight connectors on both ends, with a halogen-free PUR jacket and cable material.

Q: What data rate does this cable support?

A: It supports transmission rates up to 10 Gbit/s over shielded CAT6A conductors, and it's backed by SCHNAP's 30-day returns policy for added purchasing confidence.


For a shorter run in the same shielded RJ45-to-RJ45 Cat6A range, the industrial ethernet cable is also available at 0.6m.

An angled M12 to RJ45 Cat6A ethernet cableoffers a mixed connector configuration for M12-terminated equipment.

The wider industrial ethernet and fieldbus cable range covers additional lengths and connector configurations.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.
