Industrial Ethernet Cable PROFINET Cat5e 10m IP65 IP67 SICK

BRAND: SICK
SKU: 2105594
$728.90 List price: $916.20
+ −
30 Days Return Electricians Unlock Trade Access

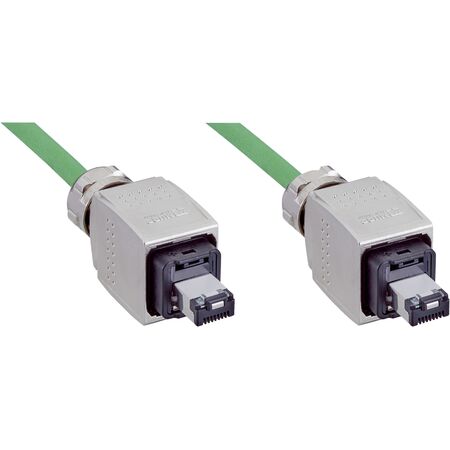

This SICK PROFINET Cat5e cable has male RJ45 4-pin straight connectors on both ends, running 10m for industrial Ethernet and PROFINET communication. It's built with a halogen-free PUR jacket, shielded conductors, and an IP65/IP67 rated enclosure, suited to flexible, stationary, or drag chain operation. The cable is flame retardant to UL 1581 and IEC 60332-1-2 and complies with AS/NZS 3000. Full technical specifications and installation notes are listed below.
Technical Specifications
  • Connection type head A: Male connector, RJ45, 4-pin, straight
  • Connection type head B: Male connector, RJ45, 4-pin, straight
  • Connector material: Zinc die-cast, nickel-plated
  • Cable length: 10 m
  • Cable type: 4-wire, PUR, halogen-free
  • Cable diameter: 6.7 mm
  • Conductor cross section: 0.34 mm²
  • Shielding: Shielded
  • Nominal voltage: 300 V AC
  • Test voltage: 2000 V AC
  • Rated impulse voltage: 1 kV
  • Current loading: ≤ 1.76 mA
  • Signal type: Ethernet, PROFINET
  • Transmission characteristics: CAT5e
  • Data transmission rate: ≤ 0.1 Gbit/s
  • Operating temperature: Flexible use –30 °C to +70 °C, Stationary –40 °C to +80 °C, Drag chain –30 °C to +70 °C, Head –25 °C to +85 °C
  • Enclosure rating: IP65 / IP67
  • Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
  • Dimensions (H x L x W): 10mm x 10000mm x 10mm
  • Weight: 0.15 kg
Key Features
  • Male RJ45 4-pin straight connectors on both ends
  • Shielded CAT5e cable for reliable data transmission
  • Halogen-free PUR jacket and cable material
  • IP65/IP67 rated enclosure for dust and water protection
  • Suitable for flexible use, stationary, and drag chain operation
  • Flame retardant according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
  • Installation by a qualified electrician or trained professional is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial Ethernet and PROFINET communication
  • Zones with oils and lubricants
  • Drag chain operation environments
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen-free cable materials reduce toxic emissions in case of fire
  • Durable PUR jacket extends cable life reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.

Available Now

The SICK YMRJF4-100PN1MRJF4 Ethernet PROFINET cable is available for immediate purchase. Ideal for industrial automation and communication applications requiring robust and reliable Ethernet connections.


FAQ

Q: Can this SICK PROFINET cable be used in drag chain applications?

A: Yes, it's rated for flexible use, stationary installation, and drag chain operation with a temperature range down to -30°C.

Q: What connectors does this cable have?

A: It has male RJ45 4-pin straight connectors on both ends, shielded for reliable Cat5e data transmission.


For shorter runs, the PROFINET Cat5e 2m IP67 cable uses a similar RJ45 shielded design.

For longer distribution runs, the PROFINET Cat5e 30m IP67 cable extends the same connector configuration.

Where a Cat5 rating with an M12 connector is preferred, the PROFINET Cat5 10m IP67 cable is the closer match.
