Industrial Ethernet Cable PROFINET Cat5e 2m IP67 SICK

BRAND: SICK
SKU: 2108116
$416.50 List price: $523.50
+ −
30 Days Return Electricians Unlock Trade Access

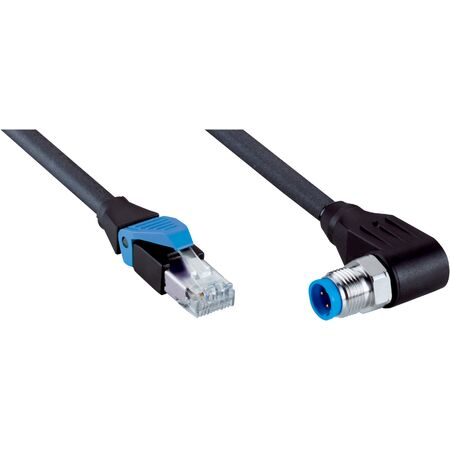

This SICK PROFINET Cat5e cable has an angled M12 4-pin D-coded connector on one end and a straight RJ45 connector on the other, running 2m for short, direct panel-to-device links. It's built with a halogen-free PUR jacket and shielded conductors, IP67 rated at the M12 connector for oil, lubricant, and seawater resistant environments. The cable operates from -40°C to +85°C and complies with AS/NZS 3000. Full technical specifications and installation notes are listed below.
Technical Specifications
  • Connection type head A: Male connector, M12, 4-pin, angled, D-coded
  • Connection type head B: Male connector, RJ45, 4-pin, straight
  • Cable length: 2 m
  • Cable type: 4-wire, CAT5e, PUR, halogen-free
  • Cable diameter: 6.7 mm
  • Conductor cross section: 2 x 2 x 0.34 mm²
  • Shielding: Shielded
  • Nominal voltage: 300 V AC
  • Test voltage: 2000 V AC
  • Rated impulse voltage: 1 kV
  • Data transmission rate: ≤ 100 Mbit/s
  • Enclosure rating: IP67 (M12), IP20 (RJ45)
  • Operating temperature: -40 °C to +85 °C
  • Bending radius flexible use: > 12 x cable diameter
  • Bending radius stationary position: > 5 x cable diameter
  • Bending cycles: 3,000,000
  • Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
  • Dimensions (H x L x W): 10mm x 2000mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Male connector M12, 4-pin, angled, D-coded
  • Male connector RJ45, 4-pin, straight
  • Shielded CAT5e cable for reliable data transmission
  • Halogen-free PUR jacket for enhanced safety
  • High bending radius for flexible use and durability
  • IP67 rated at M12 connector for dust and water protection
  • Operating temperature range from -40°C to +85°C
  • Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
  • Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial Ethernet and PROFINET communication
  • Outdoor zones with exposure to oils and lubricants
  • Seawater resistant environments
  • Cold bending resistant applications
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen-free cable jacket reduces toxic emissions in case of fire
  • Durable materials extend product lifespan, reducing waste
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK YN2D34-020PN4MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial and outdoor communication applications.


FAQ

Q: What's the shortest length in this SICK PROFINET Cat5e M12 to RJ45 series?

A: This variant is 2 meters long, suited to short, direct connections between panels and devices.

Q: Is this cable suitable for outdoor or seawater-exposed environments?

A: Yes, it's IP67 rated at the M12 connector with a halogen-free PUR jacket, suited to seawater resistant and cold bending resistant applications.


For longer runs, the PROFINET Cat5e 10m IP67 cable uses the same connector pairing.

For even longer distribution, the PROFINET Cat5e 20m IP67 cable extends the reach further.

For the longest runs in this series, the PROFINET Cat5e 30m IP67 cable covers the greatest distance.
