Industrial Ethernet Cable PROFINET Cat5e 20m IP67 SICK

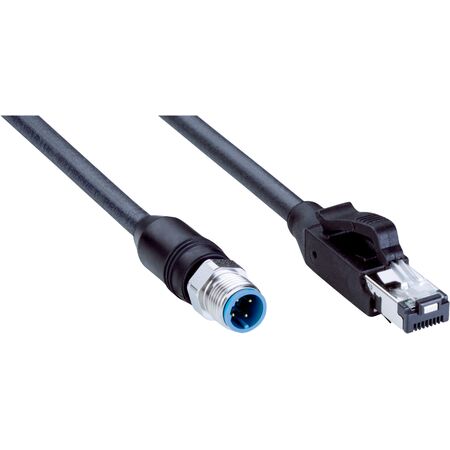

This SICK PROFINET Cat5e cable has a straight M12 4-pin D-coded connector on one end and an RJ45 4-pin connector on the other, running 20m for longer industrial and outdoor Ethernet runs. It's built with a halogen-free PUR jacket and stainless steel locking nut, IP67 rated at the M12 connector for oil, lubricant, and seawater resistant environments. The cable operates from -40°C to +85°C and complies with AS/NZS 60950. Spec sheet and application notes are available in the section below.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Cable length: 20 m
- Cable type: 4-wire, CAT5, CAT5e, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 2 x 2 x 0.34 mm²
- Shielding: Shielded
- Rated impulse voltage: 1 kV
- Data transmission rate: ≤ 100 Mbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: Stationary -40°C to +80°C, Head -25°C to +85°C
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.6 Nm
- Dimensions (H x L x W): 10mm x 20000mm x 10mm
- Weight: 0.3 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded on head A
- Male connector RJ45, 4-pin, straight on head B
- Shielded CAT5 cable with 20 m length
- Cable jacket made of halogen-free PUR material
- IP67 rated enclosure on M12 connector, IP20 on RJ45 connector
- Operating temperature range: Stationary -40°C to +80°C, Head -25°C to +85°C
- Locking nut made of stainless steel (V4A/1.4404)
- Tightening torque 0.6 Nm
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET data transmission
- Outdoor zones with exposure to oils and lubricants
- Seawater resistant environments
- Cold bending resistant applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YM2D34-200PN4MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial and outdoor Ethernet communication applications.
FAQ
Q: What length options does this SICK PROFINET Cat5e M12 to RJ45 cable series come in?
A: This variant runs 20 meters, suited to longer industrial and outdoor Ethernet distribution runs.
Q: Is this cable suitable for seawater or oil-exposed environments?
A: Yes, it's IP67 rated at the M12 connector with a halogen-free PUR jacket, suited to seawater resistant and cold bending resistant applications.
For shorter runs, the PROFINET Cat5e 10m IP67 cable uses the same connector pairing.
For much shorter connections, the PROFINET Cat5e 2m IP67 cable offers a compact alternative.For even longer distribution runs, the PROFINET Cat5e 30m IP67 cable extends the reach further.
