Industrial Ethernet M12 to RJ45 Cat6A 20m TPE Drag Chain SICK

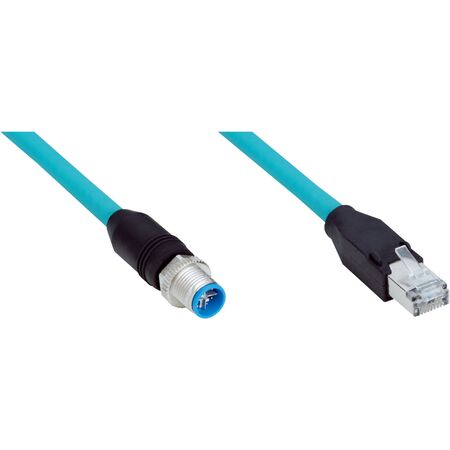

This SICK Cat6A drag chain ethernet cable pairs a screw-locking M12 8-pin X-coded connector with an RJ45 8-pin plug over a 20m turquoise TPE jacket, purpose-built for drag chain operation in robot zones with oils and lubricants. It's shielded and rated for up to 3,000,000 torsion cycles at 270°/1m, supporting data rates up to 10 Gbit/s. The cable is IP65/IP67 rated at the M12 connector and UL File No. E513908 certified. Wiring diagrams and compliance documentation are covered further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 20 m
- Cable type: 8-wire, TPE jacket, turquoise color
- Cable diameter: 7.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 10 x cable diameter, Drag chain operation > 20 x cable diameter
- Nominal voltage: 600 V AC
- Test voltage: 1,500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Ethernet, Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Operating temperature: Stationary position -40 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame-retardant
- Dimensions (H x L x W): 7mm x 20000mm x 13mm
- Weight: 0.5 kg
Key Features
- Male connector M12, 8-pin, straight, X-coded
- Male connector RJ45, 8-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- TPU connector material with zinc die-cast, nickel-plated locking nut
- 20 m length, 8-wire TPE cable with turquoise jacket
- Shielded cable with 0.14 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Supports Ethernet, Gigabit Ethernet with CAT6A transmission
- Data transmission rate up to 10 Gbit/s
- Torsion force 270°/1 m with 3,000,000 torsion cycles
- Operating temperature range -40 °C to +85 °C
- Enclosure rating IP65/IP67 (M12), IP20 (RJ45)
- UL File No. E513908 certified
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials and high bending radius reduce cable replacements and waste.
- Shielded design minimizes electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2X18-200EG2MRJA8 Industrial Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotic applications requiring reliable data transmission in harsh environments.
