Industrial Ethernet M12 to RJ45 Cat6A 5m TPE Drag Chain SICK

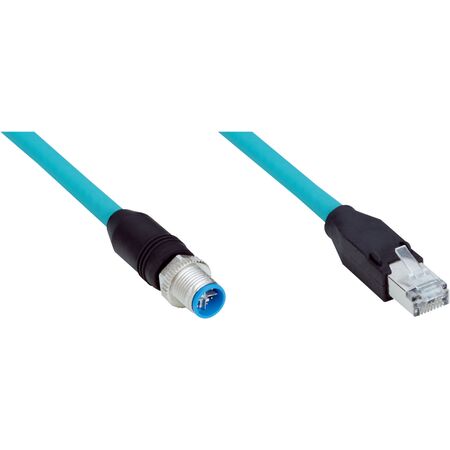

This SICK Cat6A drag chain ethernet cable pairs a screw-locking M12 8-pin X-coded connector with an RJ45 8-pin plug over a 5m TPE jacket, purpose-built for drag chain operation in robot zones with oils and lubricants. It's shielded and rated for up to 10,000,000 bending cycles and 3,000,000 torsion cycles at 270°/1m, supporting data rates up to 10 Gbit/s. The cable is IP65/IP67 rated at the M12 connector and complies with AS/NZS 3000. Full technical specifications and installation notes are listed below.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 8-pin, straight, X-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 8-wire, TPE jacket
- Cable diameter: 7.4 mm
- Conductor cross section: 0.14 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 20 x cable diameter
- Bending cycles: 10,000,000
- Nominal voltage cable: 600 V AC
- Test voltage cable: 1,500 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: 0.5 A
- Traversing speed: 1.2 m/s
- Travelling distance: 0.6 m
- Acceleration: ≤ 2.4 m/s²
- Signal type: Gigabit Ethernet
- Transmission characteristics: CAT6A
- Data transmission rate: ≤ 10 Gbit/s
- Torsion force: 270° / 1 m
- Torsion cycles: 3,000,000
- Cycles per minute: 60
- Enclosure rating: IP65/IP67 (M12), IP20 (RJ45)
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: > 100 mΩ
- Overvoltage category: III
- Thermal resistance: Flame-retardant
- Dimensions (H x L x W): 7mm x 5000mm x 13mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 8-pin, straight, X-coded
- Male connector RJ45, 8-pin, straight
- Screw-on connection (M12) and snap-in locking (RJ45)
- TPU connector material with zinc die-cast, nickel-plated locking nut
- Shielded cable with CAT6A transmission characteristics
- Data transmission rate up to 10 Gbit/s
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range -40°C to +85°C
- IP65/IP67 rated for M12 connector and IP20 for RJ45 connector
- Torsion force 270° per meter with 3,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Robot zones with oils and lubricants
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Shielded cable design reduces electromagnetic interference, improving energy efficiency in data transmission.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2X18-050EG2MRJA8 Industrial Ethernet Cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring reliable data transmission in harsh environments.
