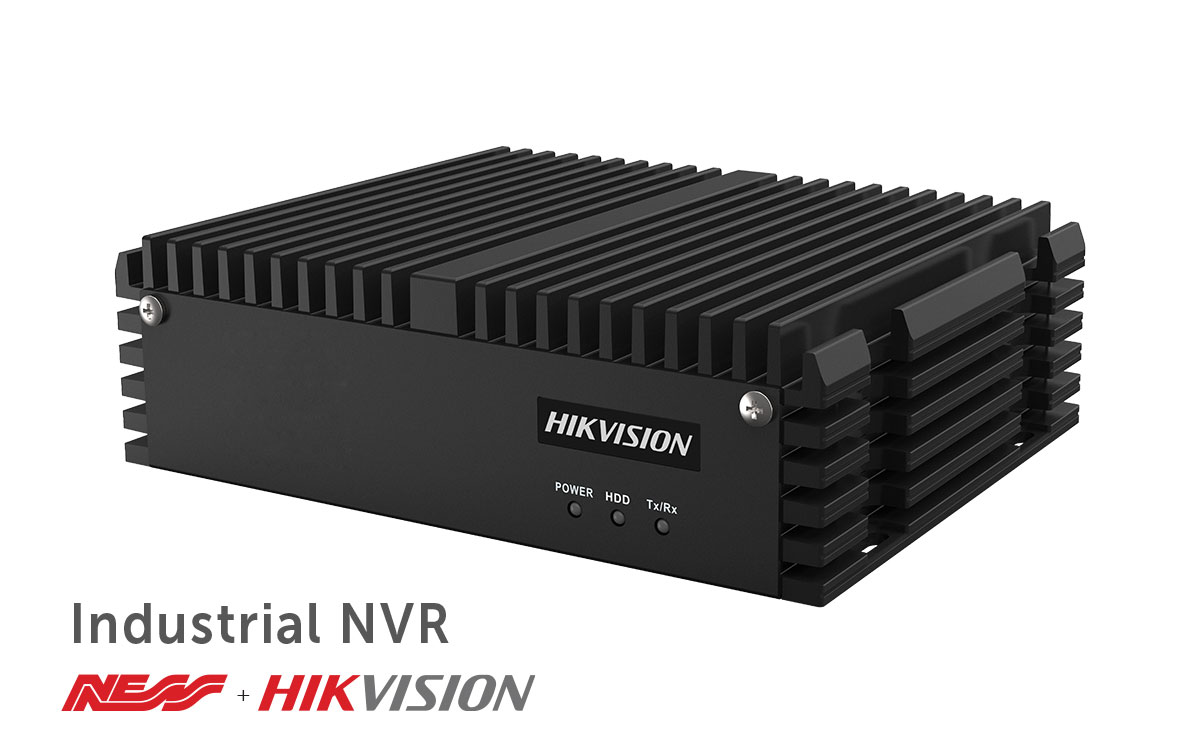

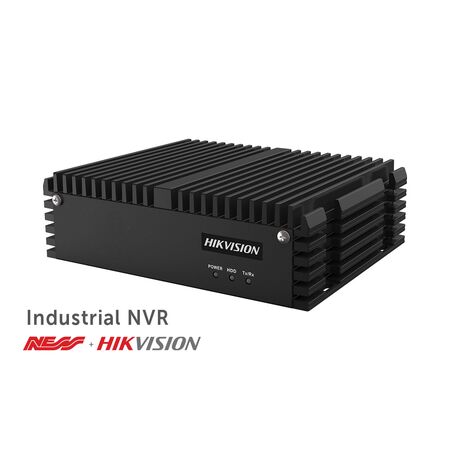

Industrial NVR 4 Channel with 1TB SSD Hikvision
Hikvision industrial NVR features 4 channels and a 1TB SSD included. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision NVR-E04MH-D/4P, Hikvision 4-Channel Network Video Recorder, 4-Port PoE NVR
Technical Specifications
- IP Video Inputs: 4 channels
- Storage: 1TB pre-installed SSD
- PoE Ports: 4 x RJ-45, IEEE 802.3af/at
- Incoming Bandwidth: 40 Mbps
- Outgoing Bandwidth: 60 Mbps
- Recording Resolution: Up to 4MP
- Decoding Capability: 4 channels at 1080p, 25 fps
- Video Compression: H.265+, H.265, H.264+, H.264
- HDMI Output: Up to 1920 x 1080 at 60Hz
- Network Interface: 1 x 10/100 Mbps self-adaptive RJ-45
- Power Supply: 48VDC, 1.04A
- Power Consumption: Up to 10W with SSD
- Operating Temperature: -10°C to 45°C
- Operating Humidity: 10% to 90%
- USB Interfaces: 2 x USB 2.0
- Manufacturer Certification: CE with EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4 and EN 55035 requirements
- Dimensions (H x L x W): 27mm x 160mm x 112mm
- Weight: 0.5 kg
Key Features
- Four-channel IP video recording for CCTV systems
- Four integrated PoE ports for direct camera connection
- Pre-installed 1TB SSD for quiet, low-power recording
- H.265+ compression can reduce storage requirements compared with conventional H.264 recording
- Supports full-channel recording at up to 4MP resolution
- Four-channel synchronous playback
- Compact design for space-constrained installations
- Anti-vibration construction for enhanced installation flexibility
- Hik-Connect support for remote network management
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security installer. Any fixed mains electrical connection must be completed by a licensed electrician in accordance with applicable Australian requirements.
Applications
- Small commercial CCTV systems
- Retail and office security installations
- Residential and apartment surveillance systems
- Remote monitoring systems using Hikvision IP cameras
- Compact PoE camera installations where low power consumption and quiet operation are required
Standards & Compliance
- AS/NZS 62676.1.1:2020 — applicable to video surveillance system requirements for CCTV security applications; product-specific Australian compliance should be confirmed from the supplier
- AS/NZS 3820 — general essential safety requirements may apply to in-scope electrical equipment; certification status should be confirmed for the supplied Australian model
Environmental Benefits
- SSD storage operates quietly and can reduce energy consumption compared with conventional hard-disk storage
- H.265+ compression can reduce storage capacity requirements and associated data-storage energy use
- Low operating consumption of up to 10W with the SSD installed
- Anti-vibration construction may extend service life and reduce replacement waste
Warranty Information
Warranty period is subject to the applicable Hikvision sales contract and authorised-distributor terms. Hikvision’s published five-year programme applies only to listed premium project-oriented series, including DeepinMind and Ultra NVR series, and does not identify this model; confirm the warranty at purchase. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/marketing-material/5-year-warranty/5-year-Warranty.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security distributors, subject to regional model and stock availability.
