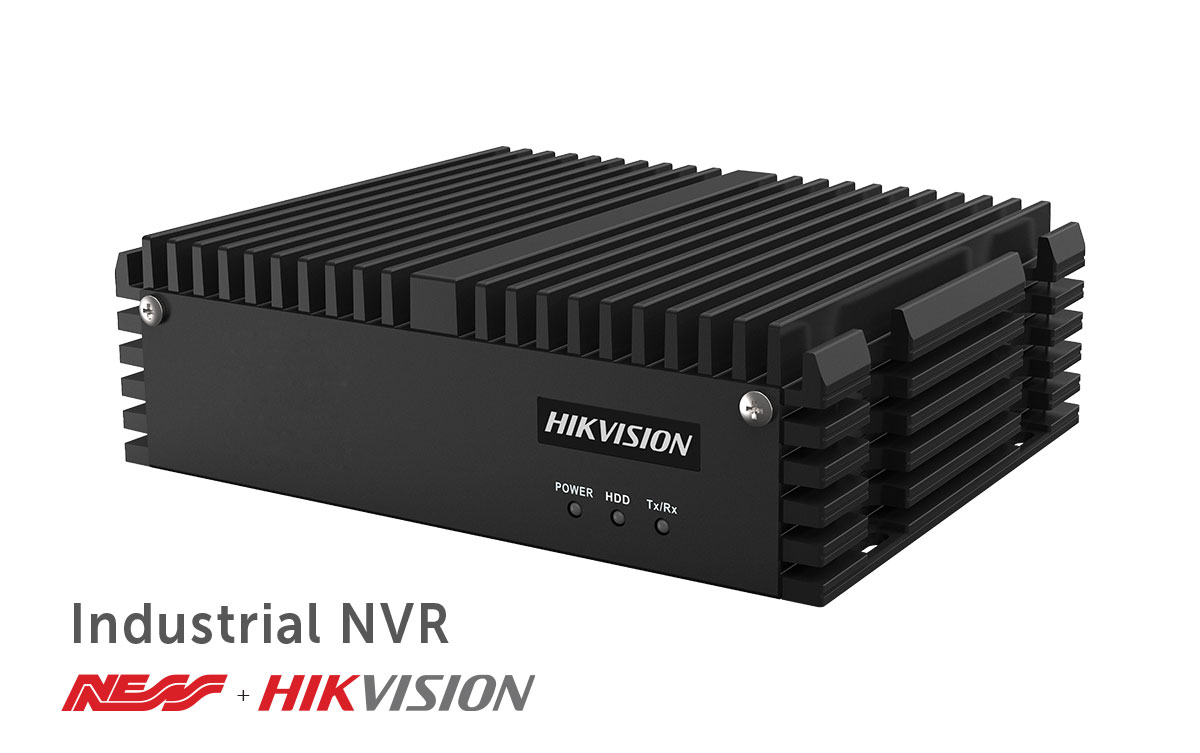

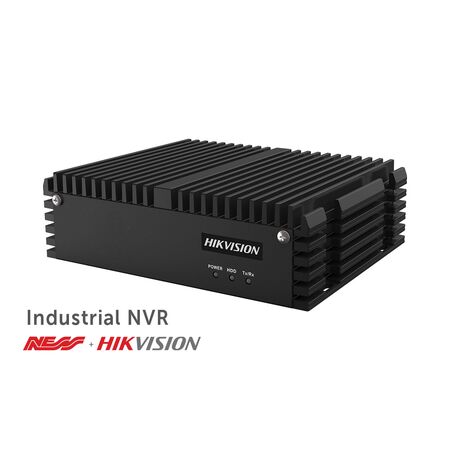

Industrial NVR 4 Channel with 2TB SSD Hikvision
Hikvision industrial NVR features 4 channels and a 2TB SSD included. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4-Channel PoE NVR, Hikvision Compact SSD NVR, DS-E04NI-Q1/4P(SSD 2T)
Technical Specifications
- Model: DS-E04NI-Q1/4P(SSD 2T)
- Video Inputs: 4-channel IP camera inputs
- Storage: Built-in 2TB SSD using eSSD technology
- Incoming Bandwidth: 40 Mbps
- Outgoing Bandwidth: 60 Mbps
- Decoding Capability: 4-channel at 1080p, 25 fps
- Video Compression: H.265, Smart265, H.264 and Smart264
- PoE: 4 × RJ-45 ports, IEEE 802.3af/at, up to 36 W
- Network Interface: 1 × RJ-45 10/100 Mbps Ethernet port
- Video Output: HDMI up to 1920 × 1080 at 60 Hz
- USB: 2 × USB 2.0 ports
- Power Supply: 48 VDC, 1.04 A
- Power Consumption: ≤10 W with SSD
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 10–90%
- Certifications Listed by Manufacturer: CE, EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 and EN 55035:2017
- Dimensions (H x L x W): 27mm x 112mm x 160mm
- Weight: 0.5 kg
Key Features
- Four-channel IP video recording for small CCTV installations
- Built-in 2TB SSD for silent, low-power video storage
- Four integrated PoE ports for direct connection of compatible cameras
- Supports H.265 and H.265+ compression technologies
- Up to 4-channel 1080p synchronous playback
- Compact fanless design suitable for space-constrained installations
- Hik-Connect and network access support
- Low power consumption of up to 10 W with the SSD installed
Professional Installation Requirements
- Configuration should be completed by a suitably qualified security or network technician. Any fixed mains electrical work associated with the power supply must be performed by a licensed electrician in accordance with applicable Australian electrical requirements.
Applications
- Small commercial CCTV systems
- Retail shops and kiosks
- Residential security installations
- Small offices and reception areas
- Low-noise surveillance installations
- PoE-connected IP camera systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 — applicable reference for video surveillance system minimum requirements and installation guidance; product-specific compliance should be confirmed from the Australian supplier or responsible supplier.
- AS/NZS 62368.1 — relevant safety standard to verify for information and communication technology equipment and its supplied power equipment in the Australian market.
- AS/NZS 4417.1 and AS/NZS 4417.2 — Australian Regulatory Compliance Marking and equipment classification requirements where the supplied electrical equipment is in scope.
Environmental Benefits
- SSD storage has no moving parts, which can reduce mechanical wear and replacement waste compared with conventional hard-disk storage.
- Low power consumption of up to 10 W can reduce energy use during continuous surveillance operation.
- Fanless operation can reduce dust ingress, noise and maintenance requirements.
- Longer service life and embedded eSSD storage can help reduce replacement frequency and electronic waste.
Warranty Information
Hikvision Australia warranty terms depend on the applicable sales contract and authorised distribution channel. Australian distributors commonly provide a 3-year back-to-base manufacturer warranty for Hikvision recording products; confirm the exact warranty with the authorised Australian supplier before purchase. Hikvision states that warranty support may not apply to unauthorised or grey-market products.
Available Now
Available through Hikvision and authorised Australian security, CCTV and technology distributors; confirm Australian-market firmware, power supply and stock status before ordering.
