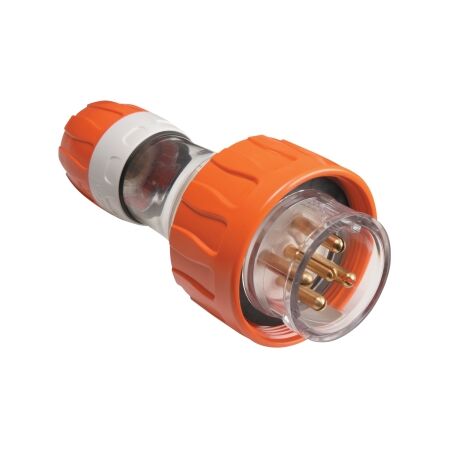

Industrial Power Plug 500V 20A | IP66 Rated | 5 Round Pins | Electric Orange by Clipsal

BRAND: Clipsal
SKU: 56P520-EO
$90.80 List price: $136.30
+
Industrial power plug with 500V 20A capacity and IP66 rating—ideal for small commercial and utility applications. Built for durability, with secure screw terminal connections and polycarbonate housing.

Product Name/Title: Clipsal - 56 Series, Straight Plug, IP66, 500V 20A - 5 Round Pins Electric Orange

Brand: Clipsal

SKU: 56P520-EO

Alternatively Known As: Industrial Power Plug, 56 Series Plug, IP66 Plug

Technical Specifications
  • Rated current: 20A
  • Rated operational voltage: 500V AC 50Hz
  • Material: Polycarbonate housing, brass pins
  • IP Rating: IP66
  • Temperature range: -25 to 75 °C
  • Cable entry: Cable gland
  • Poles description: 3P + N + E
  • Dimensions (H x L x W): 78mm x 167mm x 78mm
  • Weight: 0.36 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Rated operational voltage of 500V AC and current of 20A.
  • Screw terminal connections for secure wiring.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety.
Applications
  • Industrial: Power supply for small commercial and utility applications.
Standards & Compliance
  • Complies with AS/NZS 3123 for safety and performance.
Environmental Benefits
  • Compliant with RoHS directives, reducing harmful substances.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Straight Plug is available now for immediate purchase. Ideal for industrial applications requiring reliable power supply.

56P520-EO (56P520-EO, 241 Kb) [Download]
