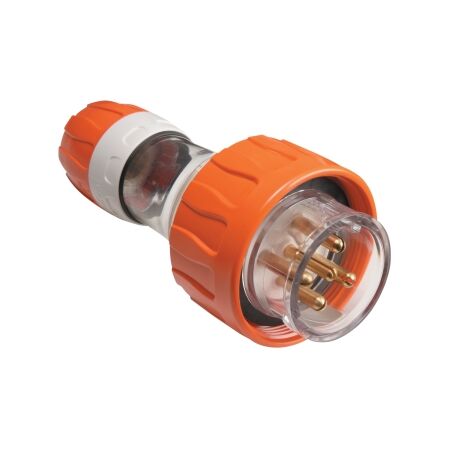

Industrial Power Plug 500V 20A | IP66 Rated | 5 Round Pins | Electric Orange by Clipsal

BRAND: Clipsal
SKU: 56P520-RO
$91.90 List price: $137.90
+
Industrial power plug with 500V 20A rating and IP66 protection—ideal for small commercial and utility applications. Built for durability, with electric orange design and 5 round pins for secure connections.

Product Name/Title: Clipsal - 56 Series, Straight Plug, IP66, 500V 20A - 5 Round Pins Electric Orange

Brand: Clipsal

SKU: 56P520-RO

Alternatively Known As: Industrial Power Plug, 56 Series Plug, IP66 Plug

Technical Specifications
  • Rated current: 20A
  • Rated operational voltage: 500V AC 50Hz
  • Material: Polycarbonate housing, brass pins
  • Connections: Screw terminal 1-6 mm²
  • Cable entry: Cable gland
  • Poles description: 3P + N + E
  • Thread type: M25
  • Ambient air temperature for operation: -25...75 °C
  • Dimensions (H x L x W): 78mm x 167mm x 78mm
  • Weight: 0.36 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Rated operational voltage of 500V AC 50Hz.
  • Rated current of 20A.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Power supply for small commercial and utility applications.
Standards & Compliance
  • Complies with AS/NZS 3123 and EN 60309-2 standards.
Environmental Benefits
  • Compliant with RoHS directives and environmental regulations.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Straight Plug is available now for immediate purchase. Ideal for industrial applications requiring reliable power supply.

56P520-RO (56P520-RO, 240 Kb) [Download]
