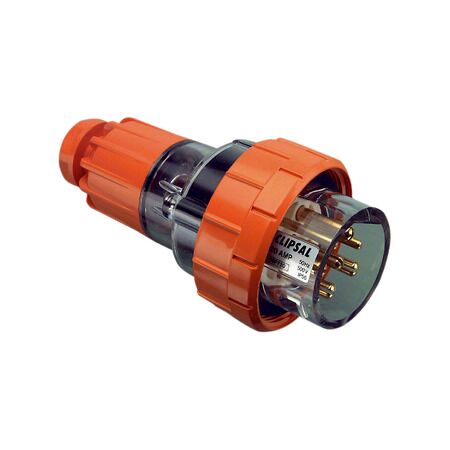

Industrial Power Plug 500V 20A | IP66 Rated | 7 Round Pins | Electric Orange by Clipsal
Industrial power plug with 500V 20A capacity and IP66 rating—ideal for machinery and equipment. Built for secure connections, with screw terminal design and electric orange finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Straight Plug, IP66, 500V 20A - 7 Round Pins Electric Orange
Brand: Clipsal
SKU: 56P720-EO
Alternatively Known As: Industrial Power Plug, 3 Phase Plug, Heavy Duty Plug
Technical Specifications
- Rated current: 20A
- Rated operational voltage: 500V AC 50Hz
- Material: Polycarbonate housing, brass pins
- IP Rating: IP66
- Connections: Screw terminal 1-6 mm²
- Wire stripping length: 12 mm to 45 mm
- Cable entry: Cable gland
- Poles description: 3P + N + E
- Dimensions (H x L x W): 78mm x 167mm x 78mm
- Weight: 0.363 kg
Key Features
- IP66 rated for protection against dust and water
- Rated operational voltage of 500V AC 50 Hz
- Screw terminal connections for secure wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications
Standards & Compliance
- Complies with AS/NZS 3123 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and environmental standards.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Straight Plug is available now for immediate purchase. Ideal for industrial and small commercial applications.
