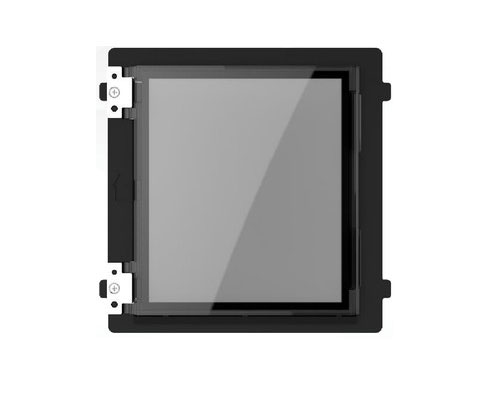

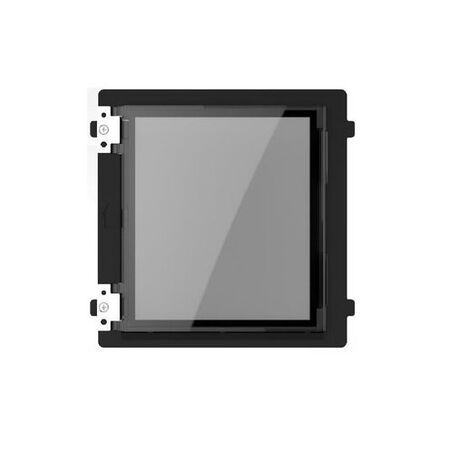

Info Module to Suit Intercom Hikvision
Hikvision intercom info module for modular door stations. Ideal for video intercom installs at building entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-KD-INFO Information Module, Hikvision Intercom Directory Module, Hikvision Modular Door Station Info Module
Technical Specifications
- Model: DS-KD-INFO
- Module Type: Information panel for modular door stations
- Power Supply: 12 VDC, supplied by another modular station module
- Power Consumption: ≤1.5 W
- Protection Rating: IP65
- Operating Temperature: -20°C to 60°C
- Operating Humidity: 10% to 95% RH
- Installation: Flush mounting or surface mounting
- Backlight: Automatically switches according to ambient conditions
- System Compatibility: Hikvision modular IP and 2-wire intercom systems
- Module Connection: Input and output connections for modular expansion
- Dimensions (H x L x W): 98.42mm x 33.8mm x 94.4mm
- Weight: 0.2 kg
Key Features
- Displays printed information or directory content at building entrances
- Automatic backlighting improves visibility in low-light conditions
- IP65-rated enclosure for outdoor door-station applications
- Compatible with Hikvision modular door station systems
- Can be installed flush or surface mounted
- Powered through the connected modular intercom system
- Designed for flexible modular door-station configurations
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or low-voltage technician. The module must be integrated with a compatible Hikvision modular door station and connected to the system's 12 VDC module wiring in accordance with the manufacturer's installation instructions.
Applications
- Commercial building entrances
- Apartment and multi-residential entry systems
- Office and business premises
- Educational and institutional facilities
- Residential intercom door stations
- Information and directory displays within modular access-control panels
Standards & Compliance
- AS/NZS IEC 60839.11.2:2019 – relevant application guidance for electronic access control systems and accessory equipment; product-specific Australian certification is not stated by the manufacturer.
Environmental Benefits
- Low power consumption of up to 1.5 W reduces operating energy use
- IP65 protection supports extended service life in suitable outdoor installations, reducing premature replacement waste
- Modular design allows the information panel to be replaced or upgraded independently of the complete door station
Warranty Information
Hikvision's standard warranty for access-control and intercom products is generally 36 months through the applicable authorised distribution channel, subject to the product-specific warranty terms, purchase documentation and Australian regional conditions.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
